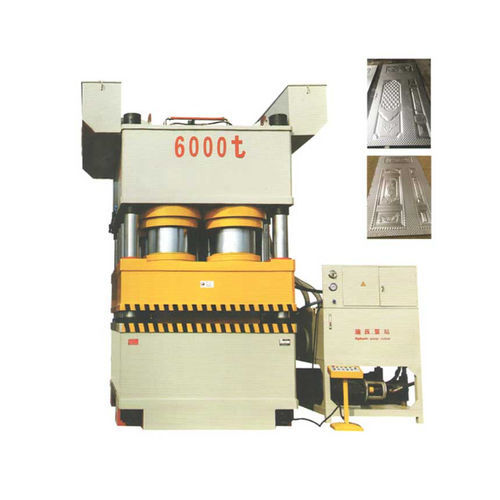

Hydraulic press formingstampingembossing
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming, stamping, embossing, quenching
- Applications
- for steel, for wood, door
- Control
- PLC-controlled
- Other characteristics
- double-action
- Force
Min.: 2,500 tf
Max.: 13,000 tf
- Opening
500 mm, 600 mm
(20 in, 24 in)- Stroke
400 mm, 500 mm
(15.748 in, 19.685 in)- Table width
Min.: 1,500 mm
(59 in)Max.: 3,600 mm
(142 in)- Table length
2,000 mm, 2,400 mm, 2,500 mm, 3,200 mm
(79 in, 94 in, 98 in, 126 in)- Max. pressure
25 MPa
- Working speed
Min.: 5 mm/s
Max.: 12 mm/s
- Return speed
120 mm/s, 150 mm/s, 160 mm/s
- Hydraulic pump power
22 kW, 30 kW, 37 kW, 45 kW
Description
This machine is a special hydraulic machine for anti-theft door, steel-wood door, interior door, stainless steel door and large iron door. This machine is suitable for all major security door manufacturers and steel wholesale markets, stamping all kinds of flower-type security door panels, stainless steel door panels, indoor The door panel has the advantages of fast, safe and reliable, energy saving, beautiful product and low cost. The device has an excellent embossing effect, a clear pattern and a strong three-dimensional effect.
1. With PLC control;
2. 3 operating ways for choice;
3. Integral forged 45# steel, quenching and tempering;
4. High efficient, convenient and safe operation;
5. Best forming effect, clear 3-dimensional pictorial;
6. High quality steel plate welded with accuracy and stability;
7. Independent electrical and hydraulic power mechanism;
8. Simply structured and well performed for energy saving;
9. Available working pressure, speed, and stroke settings.
