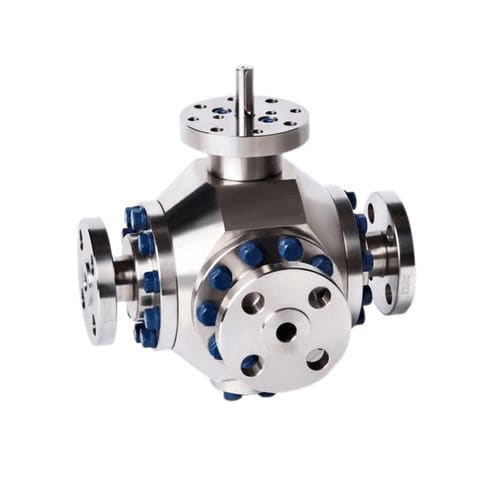

Ball valve VTL-VTT
leverelectrically-actuatedpneumatic

ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
lever, electrically-actuated, pneumatic, hydraulic
Function
mixing, diverter
Body
with Cetop flange connections, threaded, manifold, trunnion-mounted, stainless steel, carbon steel, bronze, nickel alloy, titanium
Applications
for the chemical industry, process, for pipelines, refinery
Number of channels
6-way and higher
Associated function
switching
Other characteristics
high-pressure, high-temperature, anti-static, bypass, fire-safe
Temperature

Max.: 700 °C (1,292 °F)

Min.: -196 °C (-321 °F)

Pressure

Max.: 420 bar (6,091.6 psi)

Min.: 20 bar (290.1 psi)

DN

Max.: 1,400 mm (55.118 in)

Min.: 15 mm (0.591 in)

Description

Diverter and mixing valves ideal for flow switching and bypass operations with seals at every port, widely used in the Petrochemical and Refinery industries with highly viscous media or processes that have to continuously back flush their process lines. GENERAL CONSTRUCTION ERREESSE Multiport valves are engineered to switch critical processes and difficult media. They are often in 3, 4, 5 or 6 way construction with T, L or Y port, mostly used to split or combine process flows or to switch medium between alternative pieces of process equipment such as pumps, filters, strainers, meters, heat exchangers or complete pipelines, direct flow out of or into storage tanks, shutoff flow from different locations, in severe operating conditions with high flow rates, at high pressure and critical temperature conditions. Multiport valves can also be tandem or manifold mounted to further centralize control, also combined with smart positioners, jacketing, and automated control panels, suitable for electric, hydraulic or pneumatic actuation. MATERIALS OF CONSTRUCTION Low Temperature and Low Alloy Carbon Steel Stainless steel, Duplex and Super Duplex Nickel alloys Titanium Bronze
