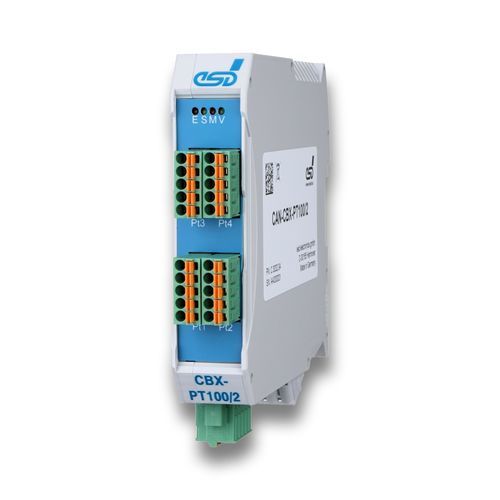

CANopen input module CAN-CBX-PT100/2

4-I4-channelautomation

CANopen Module for precise Measurement of Temperatures Temperature and Resistance Measurement with high Resolution

• Wide temperature application range with flexibility in choice of Pt or Ni probes.

• High-precision measurements with adjustable resolution and 4-wire connection technology

• High-accuracy resistance measurements with two selectable sensing currents CANopen

Integration according to CiA Specifications

• Robust CANopen communication according to CiA specifications

• Compatibility and interoperability with CiA 301 CANopen application layer and communication profile

• Generic I/O-module providing versatile integration capabilities with CiA 404 CANopen profile for measuring devices

Extensive Configuration Options for each Channel

• High flexibility thanks to adjustable analog-to-digital conversion rate from 2.5 to 1000 samples per second (SPS)

• Accurate temperature measurement using NIST standard linearization

• Precise data acquisition under changing conditions due to automatic calibration

Easy to combine with other Modules of esd’s CAN-CBX Series

• Modules for analog inputs or outputs, for example
