Alcohol hose Metalpress Milk®for winefor milkfor sludge
Add to favorites
Compare this product
Characteristics
- Use
- alcohol, for wine, for milk, for sludge
- Material
- PVC, polyester
- Applications
- suction, discharge, for food industry applications, for marine applications, for pump
- Other characteristics
- reinforced, spiral wire
- Inner diameter
Min.: 20 mm
(0.787 in)Max.: 102 mm
(4.016 in)- Outer diameter
Min.: 28 mm
(1.102 in)Max.: 119 mm
(4.685 in)- Pressure
10 bar, 12 bar, 14 bar, 16 bar
(145.038 psi, 174.045 psi, 203.053 psi, 232.06 psi)- Temperature
Min.: -30 °C
(-22 °F)Max.: 90 °C
(194 °F)
Description

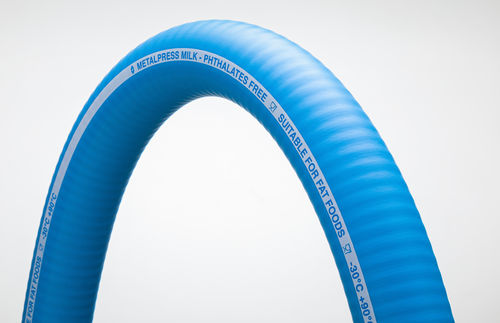

PVC hose with double reinforcement, textile and metal spiral. Low permeability to odors for the aspiration and impulse of liquids of the sewage discharge system in vessels.
Applications
Transgen of food fluids that require food simulants A, B, C and D1 in OM2 conditions according to EU 10/2011 regulations, such as wines, musts, beers, vinegars, alcoholic fluids at 50 ° and dairy
Achique pumps in vessels.
Sludge aspiration.
Drainage of all types of wells.
