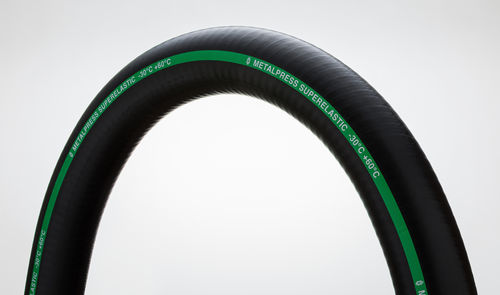

Chemical product hose Metalpress Superelastic®galvanised steelpolyesterthermoplastic rubber
Add to favorites
Compare this product
Characteristics
- Use
- for chemical products
- Material
- thermoplastic rubber, TPV, galvanised steel, polyester
- Applications
- suction, transfer, for chemical applications, low-temperature
- Other characteristics
- flexible, reinforced, spiral wire
- Inner diameter
Max.: 102 mm
(4.016 in)Min.: 20 mm
(0.787 in)- Outer diameter
Max.: 119 mm
(4.685 in)Min.: 28 mm
(1.102 in)- Pressure
10 bar, 12 bar, 14 bar, 16 bar
(145.038 psi, 174.045 psi, 203.053 psi, 232.06 psi)- Temperature
Max.: 55 °C
(131 °F)Min.: -30 °C
(-22 °F)- Delivered length
30 m
(98'05" )
Description
Thermoplastic rubber hose (TPV) with double textile reinforcement and metal spiral, for aspiration and transfer products from the chemical industry. Very flexible, even at low temperatures.
Applications
Transvase of chemicals associated with the TPV resistance table (thermoplastic rubber)
