Threaded plug SR1055

low-density polyethylene (LDPE)pull-tabflexible

Product Overview

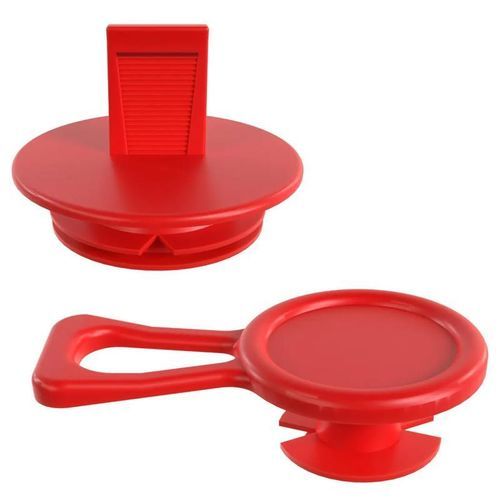

Ezeplugs are designed to seal and secure threaded holes. They feature a central or lateral pull tab for easy insertion and removal. Available in various sizes, they can protect over 25 imperial or metric thread sizes from damage, dirt, moisture, and corrosion during storage and transport. The flexible pull tab makes removal simple. They include a central or lateral pull tab that allows them to be easily inserted and removed from threaded holes. They protect against damage, dirt, moisture, and corrosion during storage and transport. Easy to install with the patented quick-fit design, securing the plug in place with a simple push. Material: LDPE. Color: Red. Series Code: SR1055

Main Technical Features

• Designed to seal and secure threaded holes
• Central or lateral pull tab for easy insertion/removal
• Protects against damage, dirt, moisture, corrosion
• Quick installation with a simple push
• Material: Low-Density Polyethylene (LDPE)
• Color: Red
• Compatible with over 25 imperial or metric thread sizes
• Series: SR1055

Available Variants (Examples of Dimensions and Threads)

• D (outer diameter): 13.2 mm, 16.4 mm, 16.5 mm, 19.0 mm, 19.3 mm, 22.7 mm, 23.8 mm, 27.6 mm, 29.5 mm, 29.9 mm, 30.0 mm, 34.3 mm, 34.5 mm, 40.0 mm, 45.0 mm
• d1 (minimum inner diameter): 9.0 mm, 11.7 mm, 12.0 mm, 15.0 mm, 15.5 mm, 19.3 mm, 22.5 mm, 29.9 mm
• d2 (maximum inner diameter): 13.2 mm, 16.4 mm, 16.5 mm, 19.5 mm, 23.8 mm, 27.6 mm, 34.5 mm
• Compatible threads: 7/16 in UNF; 1/8 in BSP; M10; M12; 1/2 in; 5/8 in; 9/16 in UNF; 1/4 in BSP; M14; M16; 3/4 in UNF; 3/8 in BSP; M18; M20; 7/8 in UNF; 1/2 in; 5/8 in BSP; M22; M24; 1-1/16 in; 1-1/8 in UNF; 3/4 in BSP; M26; M28; 1-1/4 in; 1-3/8 in UNF; 1 in BSP; M30; M36
• Pull direction: central or lateral
• Type: 1 or 2 (three-way angle)

Technical Characteristics / Specifications

• Material: LDPE (Low-Density Polyethylene)
• Color: Red
• Series: SR1055
• Quick installation with a push
• Protection against dirt, moisture, corrosion
• For imperial and metric threaded holes
• Multiple sizes and threads available
• Central or lateral pull tab
