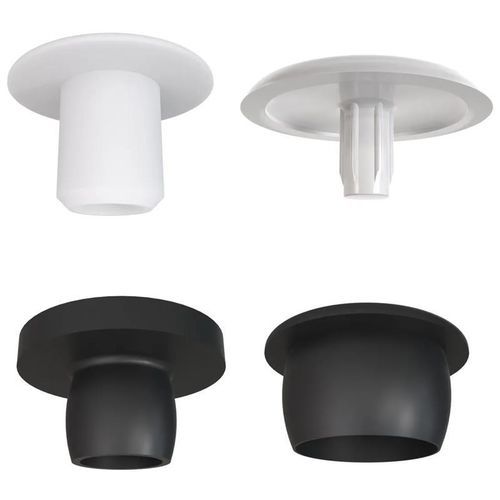

Flat plug 10060537

domepush-inplastic

Product Overview
Push-in Plugs provide a practical solution for blanking holes or bores during manufacturing, transport or on finished products. They protect handlers from rough or sharp hole edges and help prevent ingress of dirt and contaminants. Their single‑push installation and easy removal make them suitable for temporary protection during storage and handling as well as permanent use where applicable. Typical sectors include medical, automotive, food & beverage and industrial machinery.

Key Features

• Shields handlers from rough or sharp hole edges.
• Prevents ingress of dirt, moisture and contaminants.
• Simple push-in installation and easy removal.
• Available in domed and flat head styles for different finish requirements.

Material & Options
Material: LDPE - PIR
Colour options: White, Black, Grey, Natural
Series Code: SR1011

Representative variants (columns: Essentra Part Number | Price range (GBP) | Availability | Head Type | D (metric / imperial) | d (metric / imperial) | Colour | H (metric / imperial) | Type)
Essentra Part Number | Price range | Availability | Head Type | D | d | Colour | H | Type
10060537 | £0.0749 - £0.0749 | 23000 In stock | Domed | 11.0 mm / 0.433 in | 6.0 mm / 0.236 in | Black | 8.9 mm / 0.35 in | 3
10060889 | £0.0749 - £0.0749 | 98000 In stock | Domed | 7.5 mm / 0.295 in | 5.0 mm / 0.197 in | Black | 6.8 mm / 0.268 in | 2
10060599 | £0.1024 - £0.1046 | 29000 In stock | Flat | 12.0 mm / 0.472 in | 8.0 mm / 0.315 in | Black | 9.7 mm / 0.382 in | 4
10060612 | £0.1024 - £0.1046 | Request the lead time | Flat | 12.0 mm / 0.472 in | 9.0 mm / 0.354 in | Black | 11.0 mm / 0.433 in | 4
10060575 | £0.1024 - £0.1046 | 85000 In stock | Flat | 12.0 mm / 0.472 in | 7.5 mm / 0.295 in | Black | 9.5 mm / 0.374 in | 4

Notes

• Multiple head types, sizes and colours are available to suit different hole diameters and finish requirements.
• Variants cover a wide range of metric and imperial diameters, flange/overall diameters and heights.

Technical specifications

• Material: LDPE - PIR
• Available colours: White, Black, Grey, Natural
• Head types: Domed (rounded) and Flat
• Installation: push-in (single‑push removal)
• Typical applications: medical, automotive, food & beverage, industrial machinery; protection during transport and storage
• Available diameters (examples): metric — 7.0 mm, 7.5 mm, 8.0 mm, 11.0 mm, 12.0 mm, 15.4 mm, 19.0 mm, 23.0 mm; imperial equivalents available
• Max indicated temperature (example facets): 65 °C (149 °F)
• Standards/compliance: RoHS (variant dependent)
• Typical unit of sale: per piece
