- Aluminium hinge
- Essentra Components

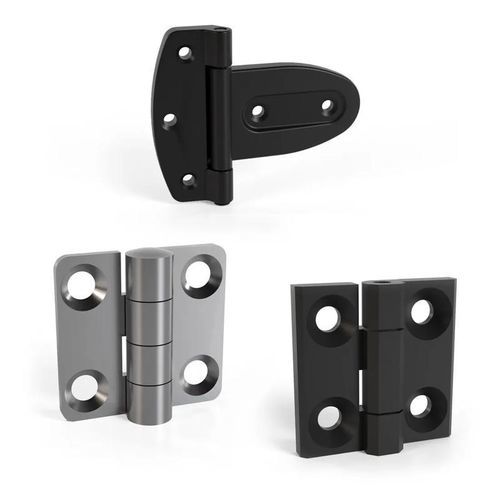

Aluminium hinge SR5506anodizedchromenickel-plated
Add to favorites
Compare this product
Characteristics
- Material
- aluminium
- Finish
- anodized, chrome, nickel-plated, powder coated, polished
- Opening angle
- 180°, 270°
- Applications
- door, for heavy-duty applications, for panels
- Other characteristics
- square, surface-mounted
- Length
Max.: 175 mm
(6.89 in)Min.: 20 mm
(0.787 in)- Width
Max.: 230 mm
(9.055 in)Min.: 30 mm
(1.181 in)- Thickness
Max.: 19 mm
(0.748 in)Min.: 1 mm
(0.039 in)
Description
Product Details
Key Features
Available Variants (Selection)
Typical Applications
Characteristics / Technical Specifications
- Leaf Hinges are a style of surface mount hinges with a flat leaf design, used for various applications.
- This Leaf Hinge range has a countersunk design, ideal for flush mounted doors and panels.
- The surface mounted hinge range offers different formats of countersunk holes, depending on the strength of the support required by the application.
- Countersunk Hinges are provided in a choice of materials to suit environmental demands, for indoor or outdoor exposure.
- Material options include Aluminium, Die Cast Zinc Alloy, Steel, Stainless Steel countersunk hinge, and Polyamide surface mount hinge options.
- Suitable for M5 and M6 fixings, generally used on plain, flush mounted isolated, and heavy duty doors. Options available for use on generators and machinery covers.
- Broad choice of material finishes: Polished, Powder Coating, Anodised, Zinc and Chrome Plating, and Electro-polished for added protection and resistance, including corrosion resistance.
Key Features
- Maximum Rotation: 180 and 270 degrees
- Leaf Shapes: Square, Rectangle, Round and Angled
- Colours: Black, Clear, Natural and Silver
Available Variants (Selection)
- Overall Length (Metric): 20.0 mm, 27.0 mm, 30.0 mm, 36.5 mm, 39.5 mm, 40.0 mm, 48.0 mm, 49.5 mm, 50 mm, 50.0 mm, 50.8 mm, 54.0 mm, 60.0 mm, 64.0 mm, 65 mm, 65.0 mm, 69.5 mm, 70.5 mm, 75 mm, 75.0 mm, 80.0 mm, 89.0 mm, 100.0 mm, 102.0 mm, 106.0 mm, 131.0 mm, 135.0 mm, 136.0 mm, 138.0 mm, 140.0 mm, 150.0 mm, 165.0 mm, 175.0 mm
- Overall Width (Metric): 30.0 mm, 33.5 mm, 35.0 mm, 37.0 mm, 38.0 mm, 39.0 mm, 40.0 mm, 45.0 mm, 47.5 mm, 48.0 mm, 49.5 mm, 50.0 mm, 55.0 mm, 60.0 mm, 62.0 mm, 63.0 mm, 75.0 mm, 76.0 mm, 79.0 mm, 80.0 mm, 81.0 mm, 82.5 mm, 85.0 mm, 90.0 mm, 100.0 mm, 108.0 mm, 120.0 mm, 138.0 mm, 150.0 mm, 230.0 mm
- Leaf Thickness (Metric): 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 4.0 mm, 5.0 mm, 5.2 mm, 5.7 mm, 5.9 mm, 6.0 mm, 6.4 mm, 7.0 mm, 7.5 mm, 8.0 mm, 9.0 mm, 9.5 mm, 10.2 mm, 11.0 mm, 11.3 mm, 11.5 mm, 15.0 mm, 19.0 mm
- Number of Mounting Holes: 0, 3, 4, 5, 6, 8
- Finish: Black Anodised, Black Powder Coated, Chrome Plated, Clear Anodised, Gloss, Matt, Nickel Plated, Polished, Powder Coating, Raw, Zamak, Zinc Plated
- Material: 30% Glass Fibre Reinforced Nylon, 304 Stainless Steel, Aluminium, Coated Steel, Die Cast Zinc Alloy, GF PA, Glass Filled Nylon, Nylon, Plastic, Stainless Steel, Steel, Zinc Alloy
- Leaf Shape: Angled, Arrow, Rectangular, Rounded, Square
Typical Applications
- Flush mounted doors and panels
- Plain, isolated, and heavy duty doors
- Generators and machinery covers
Characteristics / Technical Specifications
- Surface mount, flat leaf design
- Countersunk holes for flush mounting
- Material options: Aluminium, Die Cast Zinc Alloy, Steel, Stainless Steel, Polyamide, Glass Fibre Reinforced Nylon, Plastic
- Finish options: Polished, Powder Coating, Anodised, Zinc Plated, Chrome Plated, Electro-polished, Black Anodised, Nickel Plated, Matt, Gloss, Raw, Zamak
- Maximum rotation: 180° or 270°
- Leaf shapes: Square, Rectangle, Round, Angled, Arrow, Rounded
- Colours: Black, Clear, Natural, Silver
- Suitable for M5 and M6 fixings
- Number of mounting holes: 0, 3, 4, 5, 6, 8
- Overall length: 20 mm to 175 mm (various)
- Overall width: 30 mm to 230 mm (various)
- Leaf thickness: 1.0 mm to 19.0 mm (various)
