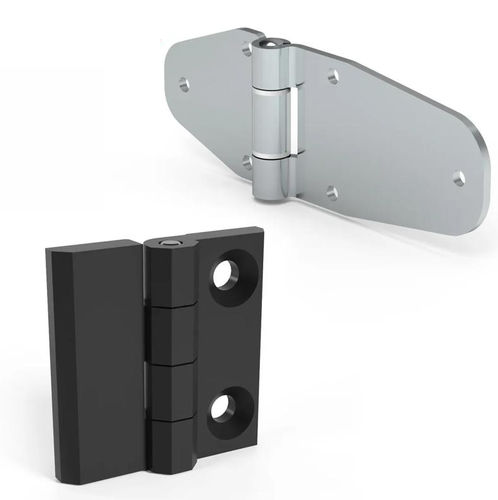

Butt hinge 20796532

metalscrew-inchrome

Flat hinges designed to provide a large contact area to improve stability and load distribution. The fixing system combines a screw and a stud for easy, secure and reinforced installation, suitable for applications with frequent use and demanding operating conditions.

• Typical applications: heavy doors, machine enclosures, access panels, automotive assemblies, generator housings.
• Designed to withstand repeated stresses and harsh operating environments.

Materials, finishes and colours

• Materials available: stainless steel, steel, zinc alloy, die‑cast zinc (Zamac), polyamide (PA), 30% glass-fibre reinforced nylon.
• Finishes / colours: natural steel, silver, black, chrome plated, powder coated, unfinished.
• Series cited: SR4599, SR5506, SR5507.

Product variants (example SKUs)

• 20121617 — Price range: €9.4099 - €13.1738; Availability: 220; Total length: 50.0 mm; Thickness: 11.0 mm; Width: 50.0 mm; Finish: Chrome; Cam material: Die‑cast zinc.
• 20123543 — Price range: €6.3009 - €8.8212; Availability: 2205; Total length: 50.0 mm; Thickness: 11.0 mm; Width: 50.0 mm; Finish: Powder coated; Material: Polyamide.
• 20054090 — Price range: €4.9744 - €6.9641; Availability: 290; Total length: 40.0 mm; Thickness: 9.0 mm; Width: 40.0 mm; Material: 30% glass-fibre reinforced nylon.
• 20069100 — Price range: €2.901 - €4.5127; Availability: 29; Total length: 40.0 mm; Thickness: 9.0 mm; Width: 40.0 mm; Finish: Chrome (when specified).
• 20054076 — Price range: €1.8602 - €2.8936; Availability: 562; Total length: 40.0 mm; Thickness: 9.0 mm; Width: 40.0 mm; Finish: Unfinished; Material indicated as PA in some variants.
• 20124397 — Price range: €8.0419 - €13.9863; Availability: 300; Total length: 40.0 mm; Thickness: 9.0 mm; Width: 40.0 mm; Finish: Powder coated; Material: Zinc alloy.
• 20124380 — Price range: €2.5027 - €3.8931; Availability: 275; Total length: 40.0 mm; Thickness: 9.0 mm; Width: 40.0 mm; Finish: Powder coated.
• 20121662 — Price range: €9.4099 - €13.1738; Availability: made to order (lead time on request); Total length: 50.0 mm; Thickness: 11.0 mm; Width: 50.0 mm; Finish: Unfinished.
• 20069117 — Price range: €2.4024 - €3.737; Availability: 30; Total length: 40.0 mm; Thickness: 9.0 mm; Width: 40.0 mm.
• 20796501 — Availability: made to order (lead time on request); Total length: 187.0 mm; Thickness: 16.0 mm; Width: 65.0 mm; Cam material: Steel; Finish: Natural.

Characteristics / technical specifications

• Type: flat hinge with screw and stud fixing.
• Design: large contact area for improved stability and load distribution.
• Fixing: combined screw + stud for reinforced installation and easy assembly.
• Applications: heavy doors, machine enclosures, access panels, automotive assemblies, generators.
• Materials (examples): Zamac (cam), zinc alloy, polyamide (PA), steel, stainless steel, 30% glass-fibre reinforced nylon.
• Available sizes (examples): total lengths 40.0 mm, 50.0 mm, 187.0 mm; total widths 40.0 mm, 50.0 mm, 65.0 mm; total thicknesses 9.0 mm, 11.0 mm, 16.0 mm.
• Mounting holes: typically 2 mounting holes (varies by SKU).
• Finish range: chrome, black, natural/unfinished, powder coating.
• Pricing: price varies by reference and quantity (price ranges shown per SKU).
