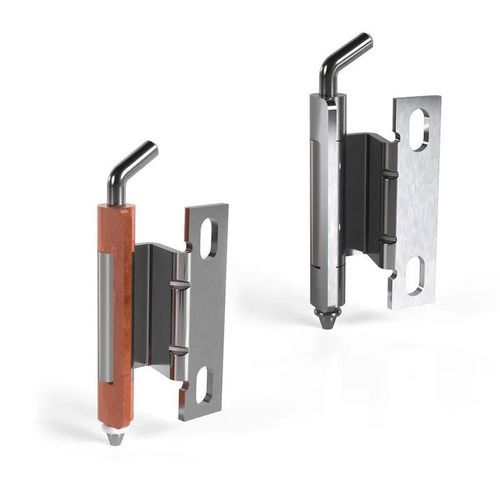

Concealed hinge SR5545

steelweld-ondoor

Product DetailsThe range of Screw/ Weld on Concealed Hinges are suitable for heavy duty applications and offer a two part mounting solution with the frame part screwed on and the door part mounted by nut to welded stud on door. The use of a pin enables the removal of the door for easy access. They are suitable for left and right hand.Available Variants (Selection)Offset Distance: 20.0 mm, 24.0 mmOverall Leaf Length: 60.0 mmOverall Width: 22.5 mm, 32.5 mm, 38.0 mmBody Material: Stainless Steel, SteelExample Attributes (per SKU)Door Leaf Width: 15.0 mmLeaf Thickness: 2.0 mmOffset Distance: 20.0 mm or 24.0 mmOverall Leaf Length: 60.0 mmOverall Width: 32.5 mm or 38.0 mmPin Diameter: 5.0 mmCommodity Code: 8302100090, 7326909890Key FeaturesHeavy duty applicationTwo part mounting: frame part screwed, door part nut to welded studPin allows door removal for accessSuitable for left and right hand doorsTechnical Specifications / CharacteristicsMounting: Screw/Weld-onMaterial: Stainless Steel or Steel (some variants zinc plated)Offset Distance: 20.0 mm, 24.0 mmOverall Leaf Length: 60.0 mmOverall Width: 22.5 mm, 32.5 mm, 38.0 mmDoor Leaf Width: 15.0 mmLeaf Thickness: 2.0 mmPin Diameter: 5.0 mmCommodity Code: 8302100090, 7326909890
