Door hinge SR5330
with studsurface-mounted

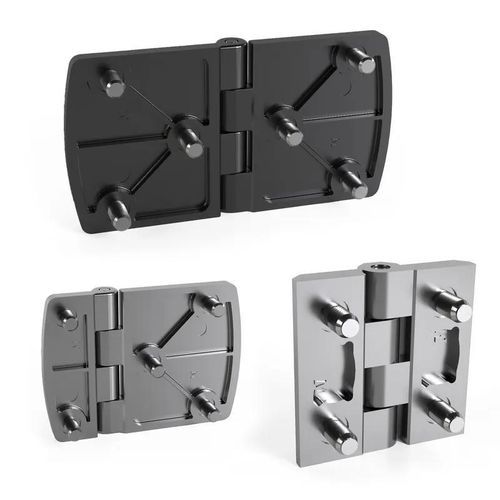

Door hinge - SR5330 - Essentra Components - with stud / surface-mounted
Door hinge - SR5330 - Essentra Components - with stud / surface-mounted
Door hinge - SR5330 - Essentra Components - with stud / surface-mounted - image - 2
Door hinge - SR5330 - Essentra Components - with stud / surface-mounted - image - 3
Door hinge - SR5330 - Essentra Components - with stud / surface-mounted - image - 4
Add to favorites
Compare this product
Go to the Essentra Components website for more information

Characteristics

Applications
door
Other characteristics
with stud, surface-mounted
Length

Min.: 50 mm
(1.969 in)

Max.: 150 mm
(5.906 in)

Width

Min.: 50 mm
(1.969 in)

Max.: 120 mm
(4.724 in)

Thickness

Min.: 6 mm
(0.236 in)

Max.: 15 mm
(0.591 in)

Description

Product Details
The Leaf Hinges with Male Threaded Inserts are a flat leaf best suited for flush mounted doors. This range, also referred to as Surface Mount Hinges or Stand Off Hinges, comes in various materials and stud sizes to provide a solution to most applications.

Available Variants (Selection)
  • Overall Lengths: 50.0 mm, 60.0 mm, 70.0 mm, 110.0 mm, 150.0 mm
  • Overall Widths: 50.0 mm, 60.0 mm, 63.0 mm, 76.0 mm, 80.0 mm, 90.0 mm, 120.0 mm
  • Overall Thicknesses: 11.0 mm, 15.0 mm
  • Leaf Thicknesses: 6.0 mm, 8.0 mm
  • Pin Material: Stainless Steel
  • Number of Mounting Holes: 0 or 4 (depending on variant)
  • Specifications: DIN-EN 1774 (for some variants)
  • Commodity Codes: 8302420090, 8302100090 (depending on variant)

Characteristics / Technical Specifications
  • Type: Leaf Hinges with Male Stud Thread Insert Mount
  • Mounting: Stud Mount (Male Threaded Inserts)
  • Application: Flush mounted doors, surface mount, stand off applications
  • Material: Various (see individual SKUs for details)
  • Available in multiple sizes and configurations
