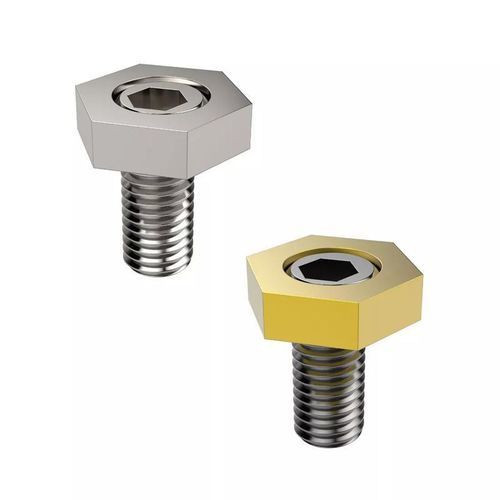

Clamp SR12113

Product Details
Eccentric fixture clamps use an eccentric shaft to enable fine torque control and changeable grip while maintaining exact alignment and placement. The eccentric design distributes clamping force evenly while preserving precise alignment.

It offers rapid and forceful clamping and is built for durability and longevity. Used in precision machining, assembly, and hold-down applications.

• Uses an eccentric shaft to enable fine torque control and changeable grip.

• It distributes clamping force evenly while preserving precise alignment.

• Used in precision machining, assembly, and hold-down applications.

Material
Stainless Steel, Steel
Series Code
SR12113, SR12112

Available Variants (Key Specifications)

• d1 (Thread Size): M4x0.7, M6x1, M8x1.25, M10x1.5, M12x1.75, M16x2
• h1 (Clamp Height): 2.80, 4.55, 4.75, 6.35, 9.52, 12.70
• l1 (Clamp Length): 9.6, 11.2, 15.0, 19.0, 22.8, 28.5
• w1 (Jaw Overall Length): 3.8, 3.80, 7.8, 7.80, 10.2, 10.20, 12.7, 15.0
• Clamping force max. (kN): 0.9, 3.5, 8.8, 17.7, 26.6
• A/F1: 3.0, 4.0, 5.0, 7.0, 8.0, 12.0
• s1 (Stroke): 0.76, 1.01, 1.27, 2.03, 2.54

Characteristics / Technical Specifications

• Material: Stainless Steel, Steel
• Series Code: SR12113, SR12112
• Thread Sizes: M4x0.7, M6x1, M8x1.25, M10x1.5, M12x1.75, M16x2
• Clamp Heights: 2.80, 4.55, 4.75, 6.35, 9.52, 12.70
• Clamp Lengths: 9.6, 11.2, 15.0, 19.0, 22.8, 28.5
• Jaw Overall Lengths: 3.8, 3.80, 7.8, 7.80, 10.2, 10.20, 12.7, 15.0
• Clamping Force Max (kN): 0.9, 3.5, 8.8, 17.7, 26.6
• A/F1: 3.0, 4.0, 5.0, 7.0, 8.0, 12.0
• Stroke (s1): 0.76, 1.01, 1.27, 2.03, 2.54
• Applications: Precision machining, assembly, hold-down
