Clamp SRW12051

Product Details

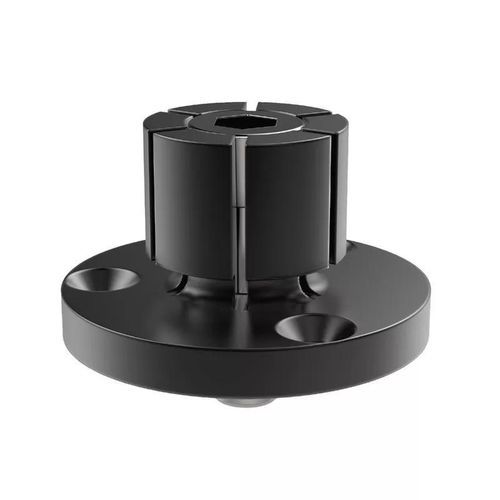

These ID Xpansion Clamps are designed for holding parts on an inside diameter, for high density machining on vertical or horizontal mills. Diameter can range from 4.1mm to a maximum of 250mm. This product can also be used as an expanding mandrel on a lathe.

Its low profile suits it for secondary operations on lathe workpieces. It can accommodate more pieces per workpiece hub or fixture plate and is simple to manufacture to size on a lathe or milling machine.

A hex key or hydraulic pull cylinders are used to install and tighten it. It has a mild steel body and is used for machinability, medical devices, electronic manufacturing, and automotive applications.

• Designed for high density machining on vertical or horizontal mills.
• It has a low profile ideal for secondary operations on lathe workpieces.
• Used for machinability, medical devices, electronic manufacturing, and automotive applications.

Material: Mild Steel

Technical Specifications / Characteristics

• Material: Mild Steel
• Diameter range: 4.1mm to 250mm
• Low profile for secondary operations
• Can be used as expanding mandrel on lathe
• Installation: Hex key or hydraulic pull cylinders
• Applications: Machinability, medical devices, electronic manufacturing, automotive

Available Variants (Selection of Key Dimensions)
h1 | h2 | h3 | d1+0.000|-0.050 | Weight (g)
45.5 | 37.6 | 32.3 | 132.9 | 2954.0
45.5 | 37.6 | 32.3 | 152.4 | 5436.0
45.5 | 37.6 | 32.3 | 132.9 | 6795.0
39.6 | 31.8 | 27.0 | 69.5 | 593.0
24.9 | 19.0 | 15.0 | 37.5 | 204.0
24.9 | 19.0 | 15.0 | 31.5 | 109.0
45.5 | 37.6 | 32.3 | 107.5 | 18260
31.8 | 25.4 | 20.6 | 56.0 | 317.0
21.8 | 16.0 | 15.0 | 29.7 | 59.0
39.6 | 31.8 | 27.0 | 75.5 | 775.0
28.6 | 22.2 | 17.5 | 50.0 | 213.0
10.7 | 7.6 | 6.1 | 20.0 | 23.0
