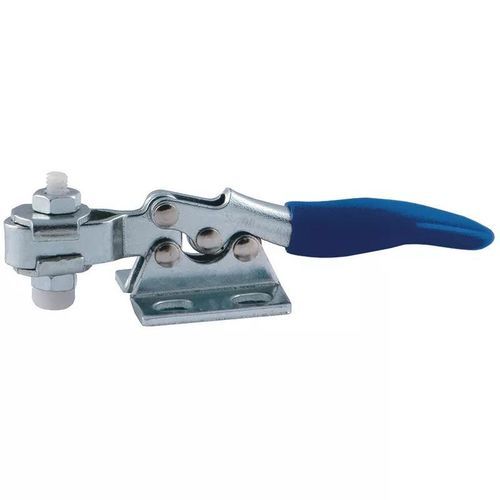

Horizontal toggle clamp SRG0005

steelflangezinc-coated steel

Overview
Horizontal toggle clamps (hold-down clamps) are manual clamping devices designed to save space while providing high holding capacity. They include a padded vinyl handle for operator comfort and zinc-plated body and linkage components for improved corrosion resistance.

Series
SRG0005

Product variants (extracted from product table)

• 10390085 — 18,778 € — 2 in stock — Material: Steel — Height under bar: 19.0 mm — Maximum holding force: 734 N (165.0 lbf) — Handle angle: 78° — Base type: Flanged — Handle orientation: Horizontal
• 10390108 — 28,6488 € — Lead time on request — Material: Steel — Height under bar: 34.0 mm — Maximum holding force: 2446.5 N (550.0 lbf) — Handle angle: 72° — Base type: Flanged — Handle orientation: Horizontal
• 10390078 — 13,1508 € — 3 in stock — Material: Steel — Height under bar: 7.5 mm — Maximum holding force: 266.9 N (60.0 lbf) — Handle angle: 80° — Base type: Flanged — Handle orientation: Horizontal
• 10390115 — 37,515 € — Lead time on request — Material: Steel — Height under bar: 45.0 mm — Maximum holding force: 3429.6 N (771.0 lbf) — Handle angle: 72° — Base type: Flanged — Handle orientation: Horizontal
• 10390320 — 40,2313 € — Lead time on request — Material: Stainless steel — Height under bar: 25.1 mm — Maximum holding force: 1467.9 N (330.0 lbf) — Handle angle: 76° — Base type: Flanged — Handle orientation: Horizontal
• 10390092 — 21,2995 € — Lead time on request — Material: Steel — Height under bar: 25.1 mm — Maximum holding force: 1467.9 N (330.0 lbf) — Handle angle: 76° — Base type: Flanged — Handle orientation: Horizontal
• 10390306 — 21,7095 € — Lead time on request — Material: Stainless steel — Height under bar: 7.5 mm — Maximum holding force: 266.9 N (60.0 lbf) — Handle angle: 80° — Base type: Flanged — Handle orientation: Horizontal
• 10390313 — 31,3343 € — Lead time on request — Material: Stainless steel — Height under bar: 34.0 mm — Maximum holding force: 734 N (165.0 lbf) — Handle angle: 76° — Base type: Flanged — Handle orientation: Horizontal
• 10349809 — 10,256 € — 39 in stock — Material: Steel — Height under bar: 12.5 mm — Maximum holding force: 225.0 kg — Handle angle: 166° — Base type: Flanged — Handle orientation: Horizontal
• 10349786 — 10,8594 € — Lead time on request — Material: Steel — Height under bar: 27.0 mm — Maximum holding force: 100.0 kg — Handle angle: 78° — Base type: Flanged — Handle orientation: Horizontal
• 10349793 — 12,3908 € — 124 in stock — Material: Steel — Height under bar: 34.0 mm — Maximum holding force: 225.0 kg — Handle angle: 66° — Base type: Flanged — Handle orientation: Horizontal
• 10349953 — 24,6052 € — Lead time on request — Material: Steel — Height under bar: 12.5 mm — Maximum holding force: 50.0 kg — Handle angle: 166° — Base type: Flanged — Handle orientation: Horizontal
• 10349946 — 31,5292 € — 46 in stock — Material: Steel — Height under bar: 34.0 mm — Maximum holding force: 150.0 kg — Handle angle: 77° — Base type: Flanged — Handle orientation: Horizontal
• 10349816 — 16,7717 € — 21 in stock — Material: Steel — Height under bar: 23.5 mm — Maximum holding force: 225.0 kg — Handle angle: 175° — Base type: Flanged — Handle orientation: Horizontal
• 20509873 — 9,5042 € — 197 in stock — Material: Steel — Height under bar: 12.0 mm — Maximum holding force: 0.50 kN — Handle angle: 90° — Base type: Flanged — Handle orientation: Horizontal
• 20509934 — 38,8709 € — 80 in stock — Material: Stainless steel 304 — Height under bar: 34.0 mm — Maximum holding force: 2.20 kN — Handle angle: 60° — Base type: Flanged — Handle orientation: Horizontal
• 20509989 — 21,9693 € — 200 in stock — Material: Stainless steel 304 — Height under bar: 12.5 mm — Maximum holding force: 0.50 kN — Handle angle: 166° — Base type: Flanged — Handle orientation: Horizontal
• 20510015 — 36,4021 € — 50 in stock — Material: Stainless steel 304 — Height under bar: 23.5 mm — Maximum holding force: 1.40 kN — Handle angle: 175° — Base type: Flanged — Handle orientation: Horizontal
• 20509903 — 25,9882 € — 75 in stock — Material: Steel — Height under bar: 26.0 mm — Maximum holding force: 1.00 kN — Handle angle: 79° — Base type: Flanged — Handle orientation: Horizontal
• 20509897 — 23,9463 € — 100 in stock — Material: Stainless steel 304 — Height under bar: 27.0 mm — Maximum holding force: 1.00 kN — Handle angle: 78° — Base type: Flanged — Handle orientation: Horizontal

Characteristics / technical specifications

• Brand: Essentra Components
• Series: SRG0005
• Handle orientation: Horizontal
• Handle: Padded vinyl for improved operator comfort
• Surface treatment: Body and linkage zinc-plated for corrosion resistance
• Available base materials: Steel, Stainless steel, Stainless steel 304 (model dependent)
• Base type: Flanged (depending on variant)
• Height under bar range (examples): 7.5 mm to 45.0 mm depending on variant
• Maximum holding force range (examples): 266.9 N (60 lbf) to 3429.6 N (771 lbf) depending on variant
• Number of listed variants on page: at least 20 SKUs
• Resources: 3D CAD models available (referenced on the product page)
