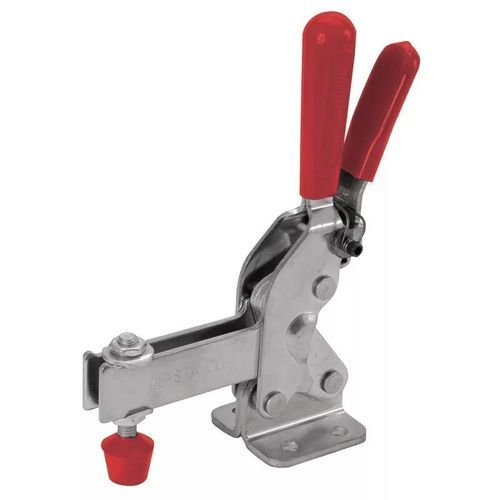

Vertical toggle clamp SRG0004

flangestainless steelsteel

Overview
Vertical knee lever clamps SRG0004 from Essentra Components are manual holding clamps designed for low-profile clamping applications. They feature a padded handle and treated components to resist corrosion. The handle and pressure bar move in opposite directions to achieve reliable closure and holding force.

Available variants (excerpt)

• 10390054 — Price: 23,7288 € — Availability: lead time on request — Material: Steel — Height under bar: 32.4 mm — Base: Flanged — Handle: Straight — Holding force: 250.0 kg
• 10390023 — Price: 14,227 € — Availability: 8 in stock — Material: Steel — Height under bar: 15.6 mm — Base: Flanged — Handle: Straight — Holding force: 50.0 kg
• 10390047 — Price: 19,0958 € - 19,475 € — Availability: 1 in stock — Material: Steel — Height under bar: 23.0 mm — Base: Flanged — Handle: Straight — Holding force: 150.0 kg
• 10390276 — Price: 26,2708 € — Availability: lead time on request — Material: Stainless steel — Height under bar: 15.6 mm — Base: Flanged — Handle: Straight — Holding force: 50.0 kg
• 10390283 — Price: 44,7105 € — Availability: 2 in stock — Material: Stainless steel — Height under bar: 16.0 mm — Base: Flanged — Handle: Straight — Holding force: 71.0 kg
• 10390290 — Price: 49,2103 € — Availability: 1 in stock — Material: Stainless steel — Height under bar: 23.0 mm — Base: Flanged — Handle: Straight — Holding force: 150.0 kg
• 10390030 — Price: 15,9285 € — Availability: 1 in stock — Material: Steel — Height under bar: 16.0 mm — Base: Flanged — Handle: Straight — Holding force: 71.0 kg
• 20510510 — Price: 22,4056 € — Availability: lead time on request — Material: Stainless steel — Height under bar: 16.0 mm — Base: Flanged — Handle: Straight (handle angle 65° indicated) — Holding force: ~50.8 kg
• 20510558 — Price: 36,8568 € — Availability: 60 in stock — Material: Stainless steel — Height under bar: 31.0 mm — Base: Flanged — Handle: Straight (angle 63° indicated) — Holding force: 173.3 kg
• 20510527 — Price: 10,9058 € — Availability: 10 in stock — Material: Steel — Height under bar: 24.0 mm — Base: Flanged — Handle: Straight — Holding force: 101.6 kg
• 20510541 — Price: 14,9804 € — Availability: lead time on request — Material: Steel — Height under bar: 31.0 mm — Base: Flanged — Handle: Straight — Holding force: 173.3 kg
• 20510503 — Price: 10,4973 € — Availability: 107 in stock — Material: Steel — Height under bar: 16.0 mm — Base: Flanged — Handle: Straight — Holding force: 50.8 kg
• 20510534 — Price: 28,7633 € — Availability: 35 in stock — Material: Stainless steel — Height under bar: 24.0 mm — Base: Flanged — Handle: Straight — Holding force: 101.6 kg
• 20510619 — Price: 54,2411 € — Availability: 45 in stock — Material: Steel — Height under bar: 82.0 mm — Base: Flanged — Handle: Straight — Holding force: 550.2 kg

Technical specifications

• Product type: Vertical knee lever clamp (manual holding clamp)
• Series: SRG0004
• Profile: Low-profile
• Handle: Padded, red color indicated on variants; straight handle for listed variants
• Base type: Flanged
• Materials available: Steel, Stainless steel
• Mechanism: Handle and pressure bar move in opposite directions to secure the clamping action
• Height under bar examples: 15.6 mm, 16.0 mm, 23.0 mm, 24.0 mm, 31.0 mm, 32.4 mm, 82.0 mm
• Holding force examples: ~50 kg up to 550.2 kg depending on variant
• Availability: some variants in stock, others available on request (lead time varies by reference)
• Additional: 3D CAD models available for download
