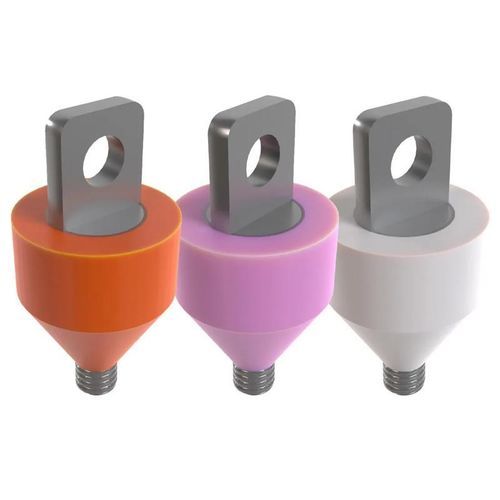

Threaded lifting eye bolt SRF0062

Masking eye bolts designed for suspending parts during powder coating and other surface treatment processes.
These components combine an eye bolt and a conical silicone mask that seals and protects the threaded insert during painting, blasting and coating operations.

Main applications

• Suspension solution for powder coating, liquid painting, shot blasting and other surface treatments.
• Function: eye loop at one end for use with hooks or suspension systems; threaded insert secures the item.
• Protection: conical silicone mask providing sealing and protection of the eye bolt during processing.
• Advantages: cost-effective and durable solution adapted to industrial finishing environments.

Options and variants

• Mask material: silicone.
• Available colors: Brown, Red, Purple, Green, White, Yellow, Orange, Transparent, Pink.
• Series: SRF0062.

Technical specifications

• Material: silicone mask with metallic threaded insert.
• Applications: suspension during powder coating, liquid painting, shot blasting and other surface treatment processes.
• Mechanical configuration: eye bolt with threaded insert for fixation.
• Sealing function: conical silicone provides sealing and protects the thread.
• Available thread sizes: M3, M4, M5, M6, M8, M12, M14, M16, M20.
• Example diameters (D) metric: 10.0 mm, 11.0 mm, 14.0 mm, 18.0 mm, 22.0 mm, 23.0 mm, 24.0 mm, 28.0 mm.
• Example heights (H) metric: 11.0 mm, 14.0 mm, 18.0 mm, 22.0 mm, 23.0 mm, 24.0 mm, 28.0 mm.
• Example thread lengths (B) metric: 2.6 mm, 3.8 mm, 4.1 mm, 4.7 mm, 5.8 mm, 6.3 mm, 6.8 mm.
