Threaded cap SR1070

roundPVCpolyvinyl chloride

Product Details

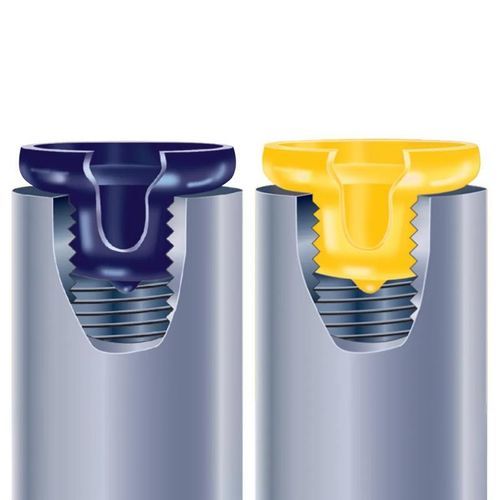

High Temperature Flexiplugs are used to hold screws and nails in both threaded and plain holes. Resists splitting and contamination. Used in automotive and manufacturing sectors.

• Metric and UNF thread sizes are supported.

• Give a firm grasp, resist breakage and tearing and are good protection against damage, dirt, moisture, and corrosion during storage and transportation.

• Commonly used in construction, electrical, and industrial equipment.

Material and Colour
Material: PVC
Colour: Yellow, Black
Series Code: SR1070

Available Sizes (Imperial and Metric)
d1 (Imperial): 0.283 in, 0.358 in, 0.406 in, 0.465 in, 0.531 in, 0.606 in, 0.752 in, 0.85 in, 1.016 in, 1.189 in
d1 (Metric): 7.2 mm, 9.1 mm, 10.3 mm, 11.8 mm, 13.5 mm, 15.4 mm, 19.1 mm, 21.6 mm, 25.8 mm, 30.2 mm
d2 (Imperial): 0.173 in, 0.252 in, 0.295 in, 0.354 in, 0.421 in, 0.496 in, 0.642 in, 0.74 in, 0.906 in, 1.079 in
d2 (Metric): 4.4 mm, 6.4 mm, 7.5 mm, 9.0 mm, 10.7 mm, 12.6 mm, 16.3 mm, 18.8 mm, 23.0 mm, 27.4 mm

Thread Sizes Supported
1-1/16;M27, 1-3/16;M33, 1/2";M12, 3/4;M20, 3/8";M10, 5/16;M8, 5/8;M16, 7/16", 7/8;M24, 9/16;M12

Thread Standards
Metric Threads, UNF Threads

Colours Available
Yellow, Black

Typical Applications
Automotive, manufacturing, construction, electrical, and industrial equipment.

Caractéristiques / spécifications techniques

• Material: PVC (Polyvinyl Chloride)
• Colour: Yellow, Black
• Thread Sizes: Metric and UNF supported
• Available d1 (diameter) sizes: 7.2 mm to 30.2 mm (0.283 in to 1.189 in)
• Available d2 (diameter) sizes: 4.4 mm to 27.4 mm (0.173 in to 1.079 in)
• Series Code: SR1070
• Resists splitting and contamination
• Protects against damage, dirt, moisture, and corrosion
• Used for holding screws and nails in both threaded and plain holes
• Commonly used in automotive, manufacturing, construction, electrical, and industrial equipment sectors
