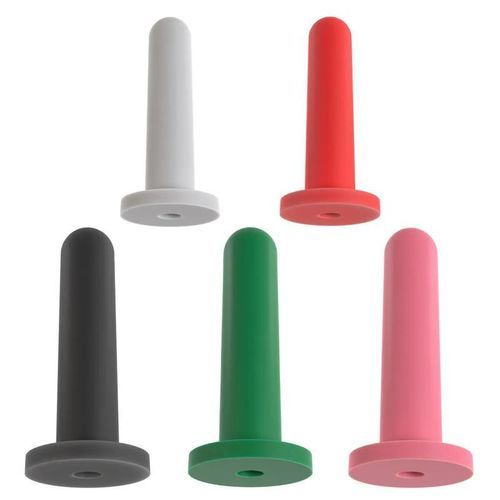

Threaded cap SR5756

roundplasticprotective

Product Details
Masking Washer Caps are intended as caps with an additional washer to hide grounding or plug holes, when inverted. Protects against solvents, abrasives, and suitable for temperatures of up to +250ºC.

• Masking Washer Caps that can be applied as a protective cap for threaded and non-threaded end tip.

• Integrated washer masks of grounding and also provides edge protection.

• Can also be inverted and used to plug holes.

Material and Colour
Material: Silicone
Colour: Grey, Natural, Purple, Yellow, Black, Red, Pink, Green

Series Code
SR5756

Available Dimensions (Metric & Imperial)
D (Cap Inside Diameter): 2.7 mm, 3.2 mm, 3.7 mm, 4.0 mm, 4.4 mm, 4.6 mm, 5.6 mm, 7.5 mm, 7.6 mm, 9.5 mm, 11.5 mm, 15.5 mm (0.106 in, 0.126 in, 0.146 in, 0.157 in, 0.173 in, 0.181 in, 0.22 in, 0.295 in, 0.299 in, 0.374 in, 0.453 in, 0.61 in)
IH (Inside Height): 25.4 mm, 38.1 mm (1 in, 1.5 in)
WD (Washer Diameter): 12.0 mm, 12.7 mm, 15.0 mm, 18.0 mm, 20.5 mm, 25.0 mm, 31.0 mm, 38.0 mm (0.472 in, 0.5 in, 0.591 in, 0.709 in, 0.807 in, 0.984 in, 1.22 in, 1.496 in)
OD (Outside Diameter): 6.0 mm, 6.5 mm, 6.6 mm, 8.0 mm, 8.1 mm, 8.5 mm, 9.8 mm, 10.5 mm, 12.5 mm, 16.5 mm, 20.5 mm, 24.5 mm (0.236 in, 0.256 in, 0.26 in, 0.315 in, 0.319 in, 0.335 in, 0.386 in, 0.413 in, 0.492 in, 0.65 in, 0.807 in, 0.965 in)
Thread Size: M3, M4, M5, M6, M8, M10, M12, M16, M20
Thread Standard: Metric

Characteristics / Technical Specifications

• Material: Silicone
• Colour options: Grey, Natural, Purple, Yellow, Black, Red, Pink, Green
• Temperature resistance: up to +250ºC
• Protects against solvents and abrasives
• Can be used as cap or plug
• Edge protection and grounding mask
• Available in multiple sizes and thread standards
• Series Code: SR5756
