Parallel plug 20680770

non-threadedsiliconesilicone rubber

Product description

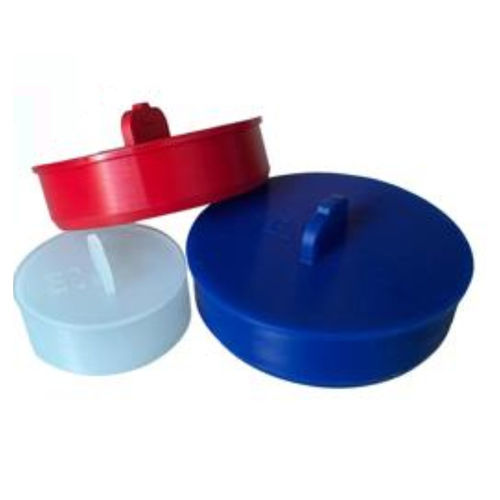

The Easy Fit Parallel Plug SRF0073 is designed to protect apertures during surface-treatment processes such as powder coating, anodizing and plating. A central pull tab allows quick insertion and removal to reduce process downtime. Made from silicone rubber (80 Shore), the plug resists temperatures up to +250 °C and is offered in Blue, Red and Natural.

Key features

• Protects apertures during surface treatments (powder coating, anodizing, plating)
• Central pull tab for fast insertion and removal
• Silicone rubber construction, 80 Shore
• Temperature resistance up to +250 °C
• Available colours: Blue, Red, Natural

Available variants (examples from product SKU table)
20680770 — Overall Diameter: 105.0 mm — Overall Height: 20.0 mm — Colour: Blue — Material: Silicone Rubber, 80 Shore — Price range: £ 1.8137 - £ 2.0152 — 3070 In stock
20680671 — Overall Diameter: 46.6 mm — Overall Height: 20.0 mm — Colour: Natural — Material: Silicone Rubber, 80 Shore — Price range: £ 0.4314 - £ 0.4793 — 3000 In stock
20680749 — Overall Diameter: 90.0 mm — Overall Height: 20.0 mm — Colour: Blue — Material: Silicone Rubber, 80 Shore — Price range: £ 1.1844 - £ 1.3160 — 2875 In stock
20680763 — Overall Diameter: 110.0 mm — Overall Height: 20.0 mm — Colour: Blue — Material: Silicone Rubber, 80 Shore — Price range: £ 1.9071 - £ 2.1190 — 2830 In stock
20680688 — Overall Diameter: 50.4 mm — Overall Height: 20.0 mm — Colour: Natural — Material: Silicone Rubber, 80 Shore — Price range: £ 0.4781 - £ 0.5312 — 3300 In stock
20680718 — Overall Diameter: 70.0 mm — Overall Height: 20.0 mm — Colour: Red — Material: Silicone Rubber, 80 Shore — Price range: £ 0.7447 - £ 0.8274 — 3950 In stock
20680664 — Overall Diameter: 45.6 mm — Overall Height: 20.0 mm — Colour: Natural — Material: Silicone Rubber, 80 Shore — Price range: £ 0.4204 - £ 0.4671 — 3000 In stock
20680695 — Overall Diameter: 52.6 mm — Overall Height: 20.0 mm — Colour: Red — Material: Silicone Rubber, 80 Shore — Price range: £ 0.5028 - £ 0.5587 — 3300 In stock
20680725 — Overall Diameter: 72.4 mm — Overall Height: 20.0 mm — Colour: Red — Material: Silicone Rubber, 80 Shore — Price range: £ 0.7831 - £ 0.8702 — 4000 In stock
20680732 — Overall Diameter: 80.0 mm — Overall Height: 20.0 mm — Colour: Red — Material: Silicone Rubber, 80 Shore — Price range: £ 0.9920 - £ 1.1022 — 3300 In stock
20680701 — Overall Diameter: 61.7 mm — Overall Height: 20.0 mm — Colour: Red — Material: Silicone Rubber, 80 Shore — Price range: £ 0.6293 - £ 0.6992 — 3900 In stock
20680756 — Overall Diameter: 100.0 mm — Overall Height: 20.0 mm — Colour: Blue — Material: Silicone Rubber, 80 Shore — Price range: £ 1.6982 - £ 1.8869 — 3190 In stock
20680657 — Overall Diameter: 30.0 mm — Overall Height: 10.0 mm — Colour: Natural — Material: Silicone Rubber, 80 Shore — Price range: £ 0.1896 - £ 0.2106 — 1000 In stock

Technical specifications

• Product name: Easy Fit Parallel Plugs
• Material: Silicone (Silicone Rubber, 80 Shore)
• Temperature resistance: up to +250 °C
• Colours: Blue, Red, Natural
• Series code: SRF0073
• Typical overall heights: 10.0 mm, 20.0 mm
• Available overall diameters (examples): 30.0 mm; 45.6 mm; 46.6 mm; 50.4 mm; 52.6 mm; 61.7 mm; 70.0 mm; 72.4 mm; 80.0 mm; 90.0 mm; 100.0 mm; 105.0 mm; 110.0 mm
• Pack/Unit: per piece
• Use cases: surface protection during powder coating, anodizing, plating and other high-temperature processes
