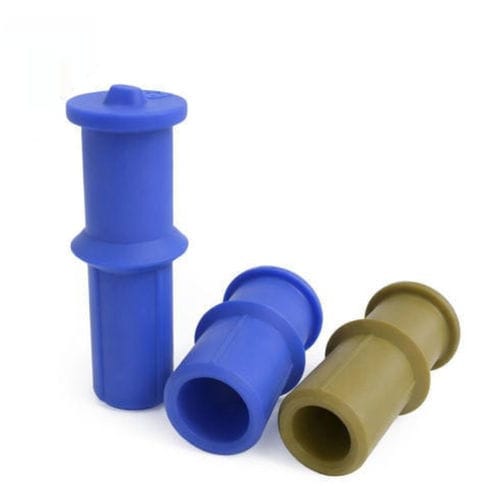

Cylindrical plug 20978105

threadedsiliconevent

Product Description
The Dual Fit Cap-Plug is engineered to provide reliable protection for component apertures, safeguarding the external wall when used as a cap or the internal wall when used as a plug. This dual-purpose design provides a versatile, cost-effective solution for industrial masking and protection. Each silicone cap-plug is colour-coded for quick size identification and includes a self-closing vent that ensures secure, full adhesion once positioned.

Key Features

• Dual-purpose design (cap or plug)
• Protects internal and external component walls
• Self-closing vent for improved sealing and adhesion
• Colour-coded sizes for fast identification

Variants / SKUs
Essentra Part Number | Price range | Availability | Colour | Inside Diameter | Inside Height | Outside Diameter | Outside Height | To Fit Thread as Cap | To Fit Thread as Plug
20978105 | £0.1283 - £0.1426 | Request lead time | Brown | 10.50 mm | 35.0 mm | 14.40 mm | 20.0 mm | M10 | M16
20978099 | £0.0960 - £0.1067 | Request lead time | Blue | 6.50 mm | 35.0 mm | 10.65 mm | 20.0 mm | M6 | M12
20978112 | £0.1488 - £0.1654 | Request lead time | Blue | 14.50 mm | 35.0 mm | 17.90 mm | 20.0 mm | M14 | M20

Usage & Applications

• Protecting internal or external walls of component apertures
• Industrial masking and protection during finishing and coating processes
• General-purpose cap/plug applications where a vented seal is required

Technical characteristics / specifications

• Material: Silicone
• Colour options: Blue, Brown
• Series Code: SRF0086
• Self-closing vent for improved adhesion/performance
• Available thread fits: M6, M10, M12, M14, M16, M20 depending on SKU
• Inside height (typical): 35.0 mm
• Outside height (typical): 20.0 mm
