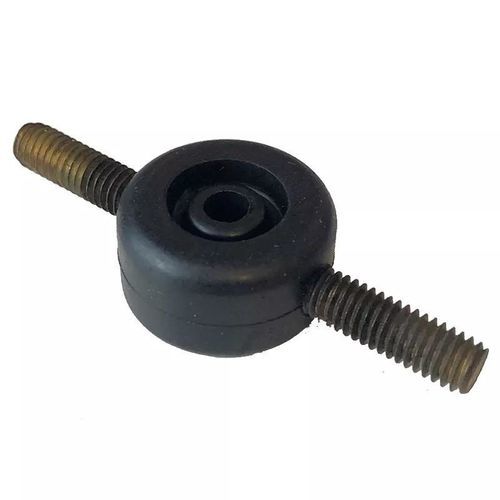

Cylindrical anti-vibration mount SR5495

zinc-plated steelchloroprenecarbon steel

Product overview

Vibration isolators composed of neoprene rubber bonded to zinc‑plated/carbon steel, designed to isolate vibration in industrial assemblies. Suitable for compression, shear or combined mounting when fail‑safe function is not required.

Key information

• Series: SR5495.
• Application: vibration isolation; mounting in compression, shear or combined modes.
• Variants: offered in multiple types (Type 1, Type 2 — three‑way angle, Type 3, Type 4 — heavy duty, knurled without tab) and a range of thread sizes.
• Materials: neoprene rubber bonded to steel (zinc‑plated / carbon steel).

Available variants — representative examples

• Part examples: 10426975; 10164280; 10164235; 10164211; 10164259; 10164273; 10281888; 10282397.
• Thread sizes found: M3, M4, M5, M6, M8, M10, M16.
• Example overall diameters (mm): 11.1, 12.7, 14.3, 24.0, 25.4, 30.0, 35.0, 40.0, 50.0, 60.0, 83.0, 96.0, 126.0, 146.0.
• Example total heights (inch / mm): 0.437 in (11.1 mm), 0.5 in (12.7 mm), 1 in (25.4 mm), 1.181 in (30.0 mm), 1.575 in (40.0 mm), 1.969 in (50.0 mm), 2.362 in (60.0 mm), 3.268 in (83.0 mm), 3.78 in (96.0 mm), 5.748 in (146.0 mm).

Characteristics / technical specifications

• Series: SR5495.
• Main materials: neoprene rubber; carbon steel (zinc‑plated).
• Available types: Type 1; Type 2 (three‑way angle); Type 3; Type 4 (heavy duty); knurled without tab.
• Thread range (examples): M3, M4, M5, M6, M8, M10, M16.
• Sample SKUs / references (non‑exhaustive): 10426975; 10164280; 10164235; 10164211; 10164297; 10281895.

Applications & notes

• Designed for vibration isolation in machinery, equipment housings and assemblies where shock and vibration damping is required.
• Can be loaded in compression, shear or combination; not intended for fail‑safe mounting.
• Various SKUs include CAD 3D downloads on product pages (where provided).
