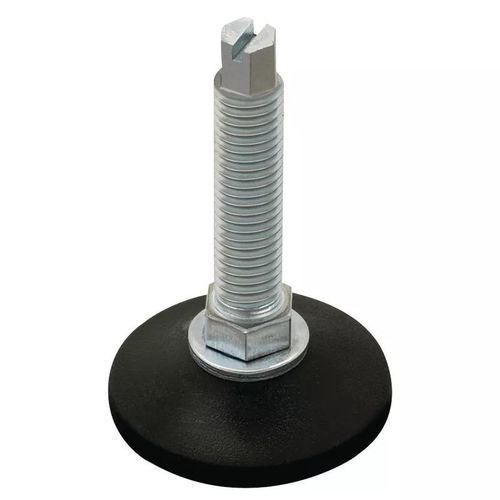

Machine tool foot SR5439

machineequipmentfor racks

Adjustable leveling feet, standard non-articulated design, intended to compensate for uneven surfaces and level machine tools, electronic racks and similar applications. They feature a rigid plastic base (smooth, non-abrasive) to protect floors.

Main information :

• Series available: SR5439.
• Function: leveling and leveling of equipment on uneven surfaces.
• Rigid plastic base providing a smooth, non-abrasive surface to protect flooring.

Examples of variants (representative selection from the variants table):

• 10351369 — Threaded insert M8, Base diameter 10.0 mm, Thread length 20.0 mm, Color: Black, Material: Polypropylene (PP).
• 10259757 — Adjustable foot non-articulated, Base diameter 48.0 mm, Thread M10, Base height 19.0 mm, Color: Black, Base material: PP.
• 10259412 — Adjustable foot non-articulated, Base diameter 30.0 mm, Thread M8, Base height 19.0 mm, Color: Black, Base material: PP.

Characteristics / technical specifications :

• Series: SR5439.
• Thread types available: M6, M8, M10, M12 (variants listed in the table).
• Base diameters (metric): 25.0 mm, 30.0 mm, 38.0 mm, 48.0 mm, 58.0 mm (depending on variant).
• Base height (example for several references): 19.0 mm (≈0.748 in).
• Thread length (example): 20.0 mm (≈0.787 in) for some references.
• Base material: Polypropylene (PP) for the displayed variants.
• Color: Black (for listed variants).
• Use: leveling equipment and protecting the contact surface thanks to the non-abrasive base.
