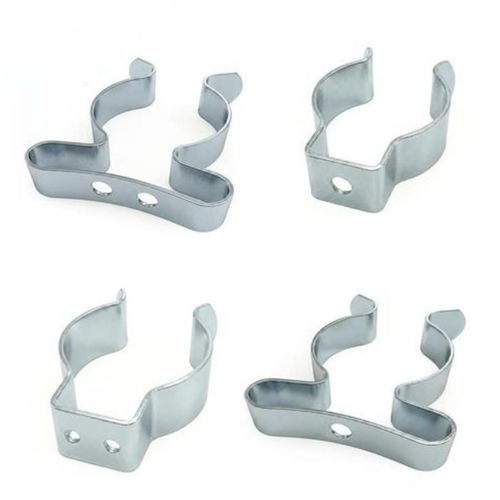

Pipe clip Terry Clips 21009570

cablecarbon steelzinc-plated steel

Overview
Terry Clips are spring‑loaded fasteners designed to securely hold cylindrical objects such as tools, tubes, cables or instruments. Manufactured from CS70 annealed carbon spring steel with a zinc‑plated finish for corrosion resistance. Available in open and closed designs to suit different mounting and access requirements.

Key features

• Spring‑loaded design for secure holding of cylindrical items.
• Material: CS70 annealed carbon spring steel with zinc plating.
• Open and closed variants to suit mounting needs.

Series / Material
Material: CS70 annealed carbon spring steel
Series Code: SRTCLP

Available variants (examples)
Essentra Part Number | Type | Grip Diameter (mm) | Thickness (mm) | Overall Length (mm) | Overall Width (mm) | Overall Depth (mm) | Screw Hole Dia (mm) | Number of Holes
21009570 | Closed | 10.0 | 0.41 | 21.0 | 16.0 | 6.5 | 2.6 | 1
21009624 | Closed | 28.0 | 0.81 | 46.0 | 39.0 | 9.53 | 3.5 | 1
21009662 | Open | 6.0 | 0.41 | 10.0 | 5.3 | 6.5 | 2.5 | 1
21009747 | Open | 38.0 | 0.91 | 47.0 | 16.5 | 9.6 | 3.3 | 1
21009785 | Open | 76.0 | 1.0 | 90.0 | 43.0 | 19.0 | 4.9 | 2
21009808 | Open | 102.0 | 1.6 | 118.0 | 51.0 | 25.4 | 5.0 | 2

Technical specifications

• Material: CS70 annealed carbon spring steel, zinc‑plated finish.
• Designs: Open and Closed variants available.
• Grip diameter range (examples): 6.0 mm to 114.0 mm across the product range.
• Thickness examples: approximately 0.41 mm up to 1.6 mm depending on variant.
• Screw hole diameters and number of holes vary by SKU (common examples: 2.5 mm, 2.6 mm, 3.3 mm, 3.5 mm, 4.9–5.0 mm; 1 or 2 holes).
• Dimensions, packaging and prices vary per SKU; see variant listing for details.
