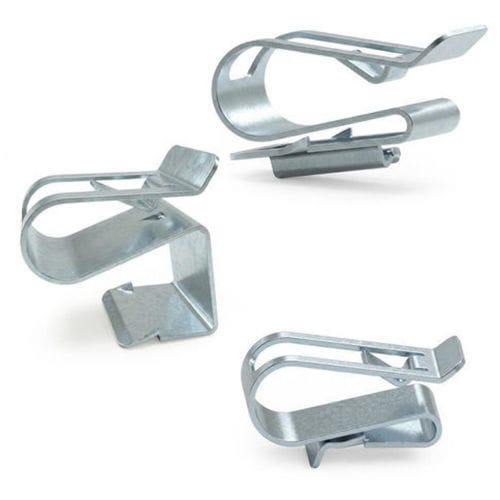

Cable clip 20998103

zinc-plated steelroutingfixing

Product description
Edge Mount Cable Clips SRCLP are zinc‑plated steel fasteners designed to route and secure Solar‑PV cables along panel edges. The push‑in, toolless design enables installers to clip and guide cables without adhesives or panel modification. Zinc plating and steel construction provide corrosion resistance for outdoor exposure to heat, UV and variable weather.

Key features

• Zinc‑plated steel clips for secure PV cable routing
• Push‑in, toolless installation
• Weather and UV resistant for outdoor use
• Multiple mounting styles: in‑line, perpendicular edge mount, flangeless panel mount

Available styles / product types

• Standard
• Flangeless
• Bi-directional

Variants table
Essentra Part Number | Type | Price range (GBP) | Clip Height (mm) | Overall Depth (mm) | Overall Width (mm) | Overall Height (mm)
20998103 | Standard | £0.2439 - £0.3044 | 13.6 mm | 23.35 mm | 15.0 mm | 17.3 mm
20998127 | Flangeless | £0.3914 - £0.4352 | 13.6 mm | 24.25 mm | 15.0 mm | 24.47 mm
20998110 | Bi-directional | £0.3914 - £0.4352 | 13.6 mm | 23.35 mm | 15.0 mm | 16.0 mm

Material / Series
Material: Zinc plated steel
Series Code: SRCLP

Technical specifications

• Material: Zinc plated steel
• Series code: SRCLP
• Mounting styles: in‑line, perpendicular edge mount, flangeless panel mount
• Installation: push‑in (toolless)
• Weather resistance: designed for outdoor exposure (heat and UV resistant)
• Available types: Standard, Flangeless, Bi-directional
• Representative SKUs and key dimensions: 20998103 (Standard) — Clip Height 13.6 mm; Overall Depth 23.35 mm; Overall Width 15.0 mm; Overall Height 17.3 mm; price range £0.2439–£0.3044. 20998127 (Flangeless) — Clip Height 13.6 mm; Overall Depth 24.25 mm; Overall Width 15.0 mm; Overall Height 24.47 mm; price range £0.3914–£0.4352. 20998110 (Bi-directional) — Clip Height 13.6 mm; Overall Depth 23.35 mm; Overall Width 15.0 mm; Overall Height 16.0 mm; price range £0.3914–£0.4352
