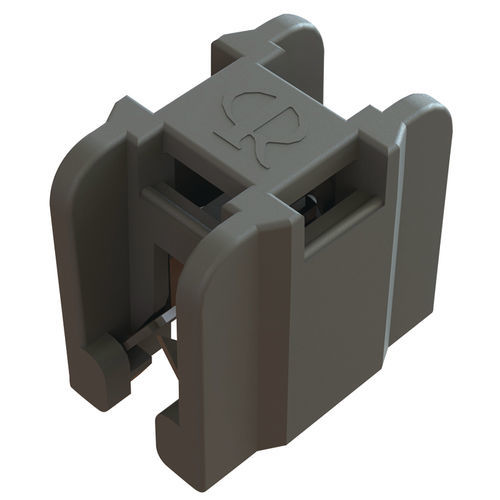

Polyamide cable tie mount SR6261

stainless steel

Overview

Edge-mount cable tie clips designed to secure cables at the edge of panels using a cable tie. Available as clip-only or clip+tie versions, these parts provide a simple, repeatable solution for edge cable routing and retention in industrial assemblies.

Variants / examples

• 10300572 — Cable length: 200.0 mm; Panel thickness min: 3.0 mm; Panel thickness max: 6.0 mm; Total width: 17.1 mm; Total height: 19.0 mm
• 10300565 — Panel thickness min: 0.7 mm; Panel thickness max: 3.0 mm; Total width: 13.9 mm; Total height: 15.6 mm
• 10300732 — Panel thickness min: 0.7 mm; Panel thickness max: 3.0 mm; Total width: 15.0 mm; Total height: 168.3 mm
• FTH-31-01 (10009451) — Panel thickness min: 0.8 mm; Panel thickness max: 3.0 mm; Total width: 10.8 mm; Total height: 16.0 mm

Technical characteristics / specifications

• Product type: Edge-mount cable tie clip (clip-only or clip + cable tie)
• Series / commercial reference: SR6261
• Mounting method: Edge mounting (clips clamp on panel edge)
• Color: Black (common for many SKUs)
• Cable length examples: 159.3 mm, 200.0 mm (depending on variant)
• Panel thickness (examples): minimum 0.7 mm or 0.8 mm; maximum 3.0 mm or 6.0 mm (depending on SKU)
• Total width examples: ~10.8 mm, 12.0 mm, 13.9 mm, 15.0 mm, 17.1 mm
• Total height examples: ~14.5 mm, 15.6 mm, 16.0 mm, 19.0 mm, up to ~174.0 mm for extended variants
• Materials: Nylon 6/6; some variants include stainless steel components or mixed Nylon/Stainless Steel
• Availability & pricing: Multiple SKUs with varying stock levels and price ranges (see SKU table)

Recommended applications

• Edge routing and securing of wiring on control panels, instrument enclosures and cabinets
• Cable management in telecommunications racks, industrial machinery and electrical assemblies
• Environments requiring a compact, repeatable edge-mounted fastening for cable harnesses
