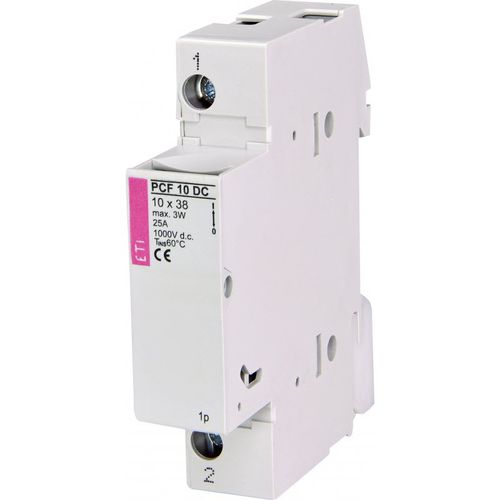

Fuse disconnector 002550201

low-voltagefor photovoltaic applications

The product is a fuse disconnector specifically designed for cylindrical fuse-links in photovoltaic systems. It has 1000 V DC rated voltage, 25 A maximum rated current, 3W maximum fuse link power dissipation, 0.5 mm2-10 mm2 cross-section of connecting wire in AWG 8-20 solid, 18mm pole fixed width, EN 60715 mounting on the rail, DC-20B utilization category, 1.2 Nm rated torque, IEC 60269-2:2006 UL 284-4 fuse-links standards, and IEC 60947-1 Ed. 4.0 EN 60947-1:1999+A1+A2 IEC 60947-3 Ed. 2.1 EN 60947-3:1999+A1:2001 fuse disconnector standards. The product has a certification from UL.
