fuse switch disconnector / low-voltage / DIN rail / modular
002570001

Add to MyDirectIndustry favorites
Compare this product
fuse switch disconnector / low-voltage / DIN rail / modular fuse switch disconnector / low-voltage / DIN rail / modular - 002570001
{{requestButtons}}

Characteristics

  • Type:

    fuse

  • Voltage level:

    low-voltage

  • Other characteristics:

    DIN rail, modular

  • Current:

    100 A

  • VAC:

    690 V

Description

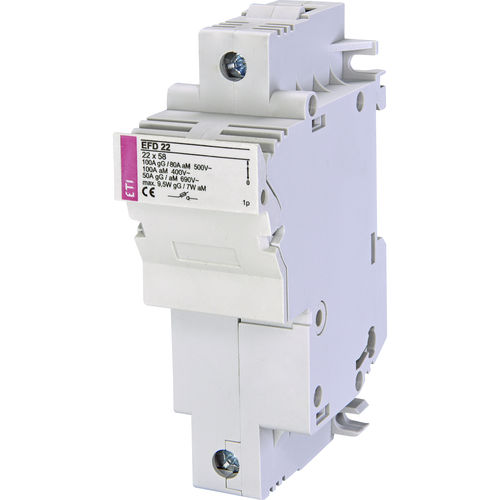

The ETI cylindrical fuse disconnector EFD is constructed in a 22mm x 58mm framework with plastic components resistant to extremely high temperatures. Its drawer guarantees that a fuse link can't touch with the housing as the changing of fuse link restricts direct-contact of parts under voltage, in accordance to IP20 protection class. This unit comprise of a technical indicator type namely, L (LED) with built-in LED diode that blinks after the fuse-link operates and allows low total dissipation through the internal circuit resistance of 2M. In addition, all contact surfaces are silver-plated and can be mounted on standard DIN-rail of 35mm. Moreover, it strictly complies with IEC 60947-1, IEC 60947-3, UL 4248-1, UL 4248-4, UL 4248-8 and UL 486E directives.
