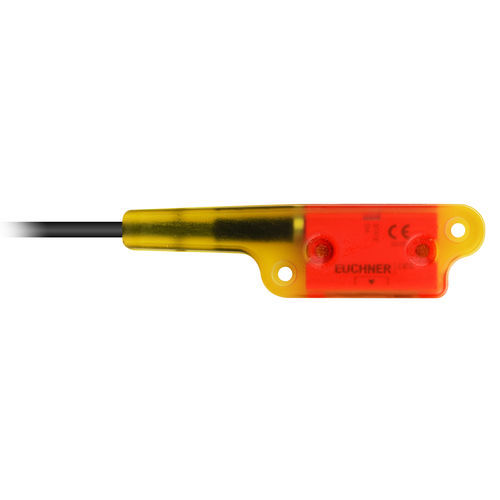

Safety switch CES-I-AP-M-C14-U20-158631
IP67IP65IP69K

Safety switch - CES-I-AP-M-C14-U20-158631 - EUCHNER GmbH + Co. KG - IP67 / IP65 / IP69K
Safety switch - CES-I-AP-M-C14-U20-158631 - EUCHNER GmbH + Co. KG - IP67 / IP65 / IP69K
Safety switch - CES-I-AP-M-C14-U20-158631 - EUCHNER GmbH + Co. KG - IP67 / IP65 / IP69K - image - 2
Add to favorites
Compare this product
Go to the EUCHNER GmbH + Co. KG website for more information

Characteristics

Protection level
IP67, IP65, IP69K, IP69
Mounting
surface-mount
Other characteristics
LED-illuminated, DC, safety, contactless, semiconductor
Primary current

Min.: 0.25 A

Max.: 8 A

Voltage

24 V

Operating temperature

Min.: 0 °C
(32 °F)

Max.: 65 °C
(149 °F)

Description

• Tested for material resistance in accordance with Ecolab specifications • 2 safety outputs (semiconductor outputs) • Category 4 / PL e according to EN ISO 13849-1 • Three active faces • Connecting cable PUR, 20 m, with cable end sleeves • Multicode • Monitoring output OD Multicode evaluation Every suitable actuator is detected by the switch. Category according to EN 13849-1 Due to two redundantly designed semiconductor outputs (safety outputs) with internal monitoring suitable for: Category 4/PL e according to EN 13849-1 Important: To achieve the stated category according to EN ISO 13849-1, both safety outputs (FO1A and FO1B) must be evaluated. LED indicator STATE Status LED DIA Diagnostics LED
