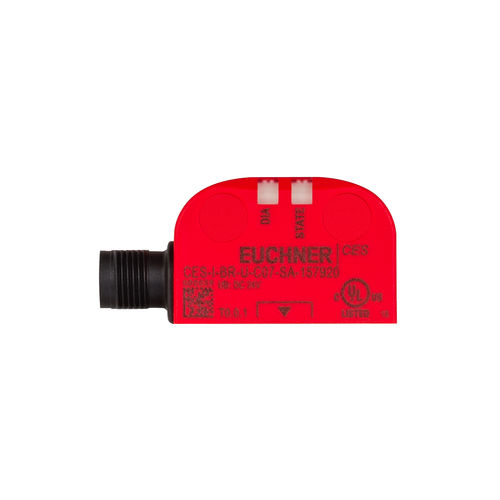

Safety switch CES-I-BP-M-C07-SB-160076IECIP67IP65
Add to favorites
Compare this product
Characteristics
- Protection level
- IEC, IP67, IP65, IP69K, IP69
- Other characteristics
- LED-illuminated, door, DC, plastic, safety, contactless, semiconductor, IO-Link
- Primary current
40 mA
- Voltage
24 V
- Operating temperature
Max.: 55 °C
(131 °F)Min.: -25 °C
(-13 °F)
Description
• Suitable for separate operation (no series connection)
• Multicode
• M12 plug connector, 5-pin
• With door monitoring output OD
• Diagnostics via IO-Link with safety module ESM-CB
• 2 safety outputs (semiconductor outputs)
• Short circuit monitoring
• Category 4 / PL e according to EN ISO 13849-1
• Three active faces
Multicode evaluation
Every suitable actuator is detected by the switch.
Category according to EN 13849-1
Due to two redundantly designed semiconductor outputs (safety outputs) with internal monitoring suitable for:
Category 4/PL e according to EN 13849-1
Important: To achieve the stated category according to EN ISO 13849-1, both safety outputs (FO1A and FO1B) must be evaluated.
LED indicator
STATE
Status LED
DIA
Diagnostics LED
