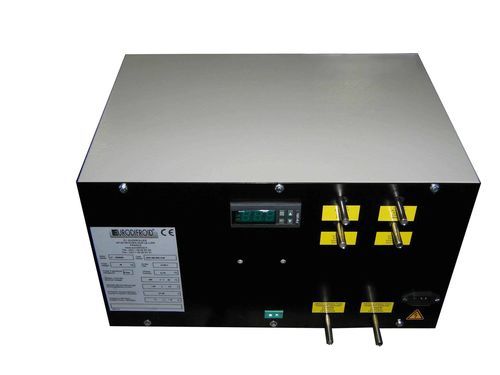

Gas gas dryer SGA seriesrefrigeratedfor laboratoryfor gas drying
Add to favorites
Compare this product
Characteristics
- Treated material
- for gas
- Options
- refrigerated
- Application
- for laboratory, for gas drying
Description
Overview
Gas dryers for laboratory use. EURODIFROID gas dryers remove water from analyzers by cooling the gas and separating condensates. The unit operates by direct expansion: the gas to be cooled passes through a cooled exchanger-separator using an evaporating refrigerant. Water collects in the lower part of the separator and can be discharged by gravity or by a peristaltic pump. Outlet gas temperature is regulated by a hot gas injection valve to maintain a dew point of +1°C. Each unit can be supplied with 1, 2 or 3 independent circuits. Units are delivered ready-to-use and charged with non-CFC refrigerant. The cooling circuit is made of stainless steel 316L (low carbon) for improved resistance to corrosion and stress cracking.
Key benefits:
Standard features
Additional equipment (standard continued)
More technical specifications
Click on "Go to the EURODIFROID website for more information"
Gas dryers for laboratory use. EURODIFROID gas dryers remove water from analyzers by cooling the gas and separating condensates. The unit operates by direct expansion: the gas to be cooled passes through a cooled exchanger-separator using an evaporating refrigerant. Water collects in the lower part of the separator and can be discharged by gravity or by a peristaltic pump. Outlet gas temperature is regulated by a hot gas injection valve to maintain a dew point of +1°C. Each unit can be supplied with 1, 2 or 3 independent circuits. Units are delivered ready-to-use and charged with non-CFC refrigerant. The cooling circuit is made of stainless steel 316L (low carbon) for improved resistance to corrosion and stress cracking.
Key benefits:
- Ensures water-free gas analysis
- Industrial-grade construction
- Low noise level
- Fast installation
- Cooling circuit in stainless steel
- Up to 3 independent circuits per unit
- Designed and manufactured in France
Standard features
- Piston hermetic compressor
- Electronic thermostat control
- Air-cooled condenser
- Automatic expansion valve
- Cooling circuit in stainless steel 316L (low carbon)
- Hot gas injection valve
Additional equipment (standard continued)
- Filtered power inlet with anti-feedback protection for onboard electronics
- Electro-galvanized sheet metal cabinet
- Textured RAL7032 paint finish
- Complete documentation
- 18-month warranty (unless otherwise agreed)
More technical specifications
Click on "Go to the EURODIFROID website for more information"
