Oil cooler SCI series
waterglycol waterfuel

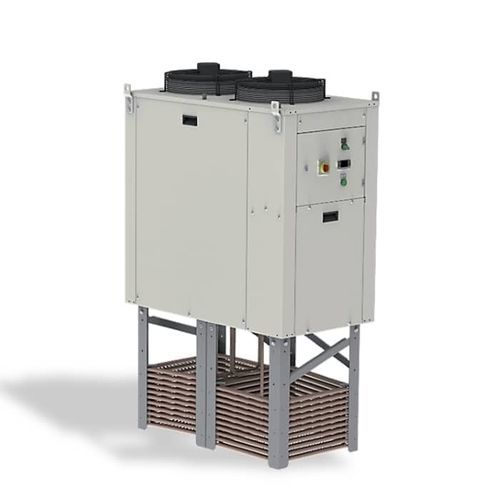

Oil cooler - SCI series - EURODIFROID - water / glycol water / fuel
Oil cooler - SCI series - EURODIFROID - water / glycol water / fuel
Oil cooler - SCI series - EURODIFROID - water / glycol water / fuel - image - 2
Oil cooler - SCI series - EURODIFROID - water / glycol water / fuel - image - 3
Oil cooler - SCI series - EURODIFROID - water / glycol water / fuel - image - 4
Oil cooler - SCI series - EURODIFROID - water / glycol water / fuel - image - 5
Oil cooler - SCI series - EURODIFROID - water / glycol water / fuel - image - 6
Add to favorites
Compare this product
Go to the EURODIFROID website for more information

Characteristics

Material
water, oil, fuel, glycol water, for wine
Applications
for the automotive industry, industrial, for the food industry, laboratory, for the chemical industry, tank suction, for industrial operation, for the plastics industry, for hydraulic applications, for the pharmaceutical industry, for the food and beverage industry, for hydraulic systems, for water treatment
Other characteristics
high-performance, compact, stainless steel, electric, adjustable, pressure, low-maintenance, corrosion-resistant, active, immersion
Power

Max.: 16.4 kW

Min.: 6 kW

Maximum temperature

Max.: 25 °C
(77 °F)

Min.: 15 °C
(59 °F)

Description

Overview
Active immersed chillers designed to cool tanks or industrial circuits. Suitable for water, water-glycol, oil and emulsions.

Key points
  • Designed for cooling tanks and process stations
  • No external hydraulic system (pump) required
  • Compatible with water, water-glycol, oil, emulsions
  • Easy installation
  • Minimal maintenance

Standard equipment
  • Available in versions compatible with water, water-glycol, oil, emulsions
  • Hermetic scroll compressor
  • Stainless steel 304 double concentric coil evaporator
  • Copper tube condenser with aluminium fins, fan-cooled
  • Axial fan
  • High and low pressure switch
  • Electronic controller with resin-sealed stainless steel probe
  • High and low temperature alarms
  • General fault on dry contact
  • Start/stop via external contact
  • Textured RAL 7035 paint
  • Complete documentation
  • 18-month warranty (unless otherwise agreed)

Options and variants
  • Electric fluid level sensor
  • Air filter
  • Differential control
  • Non-standard RAL paint
  • Stainless steel chassis
  • Fluid agitator (recommended for oil or poorly agitated tanks)
  • Centrifugal fans for ducted condensation air
