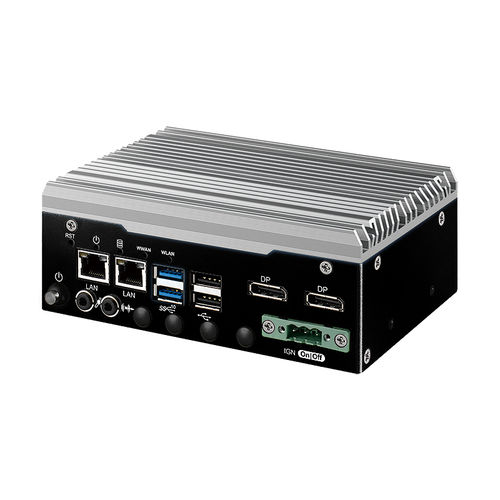

eIVP-TGU-IV-V0000
11th Gen. Intel® Core™ i7/i5/i3/Celeron® In-Vehicle System
• Fanless in-vehicle system
• 11th Gen. Intel® Core™ i7/i5/i3/Celeron® U-series
• DDR4 3200MHz memory, up to 32GB
• Dual DP display ports, up to 4K resolution
• Multiple USB supports up to 10Gbps data transfer
• 2.5GigE LAN x 1 supports Intel® Time Sensitive Networking (TSN) for real-time data synchronization
• GigE LAN x 1 supports iAMT, TPM 2.0 supported
• 9V to 55V wide range DC power input, ignition control
• Nano SIM card socket for 5G/WiFi/4G/3G/LTE/GPRS/UMTS
• Optional supports full function SUMIT A, B expansionsCE, FCC, EN50155, EN50121-3-2
Specifications
Model name : eIVP-TGU-IV-V0000
Processor : 11th Gen. Intel® Core™ i7/i5/i3/Celeron® U-series
Main Memory : DDR4 3200MHz SO-DIMM x 1, up to 32GB
Format : H.264 / H.265
Video Input : Based on the installed software EverFocus AiO NVR: up to 8ch
Video Output : DP x 2, up to 4096 x 2304 @60Hz
Audio Input : MIC x 1
Audio Output : Line-out x 1
Format : H.264 / H.265
Resolution : 1920 x 1080 at 30fps (NTSC) / 25fps (PAL)
Internal HDD Bay : SATA III (6Gbps) x 1
Removable SSD Tray : n/a
RAID : n/a
CE / CFast / mSATA Slot : n/a
Ethernet : LAN1: Intel® Ethernet Controller I219LM GigE LAN supports iAMT LAN2: Intel® Ethernet Controller I225-IT supports 2.5 GigE LAN
WiFi : Optional
4G / 5G : Optional
GPS / Gsensor : Optional
Alarm Input : 16-bit GPIO
Alarm Output : 16-bit GPIO
Front I/O Panel : Reset switch x 1 LED indicator (power, HDD, WWAN, WLAN) x 4 2.5GbE LAN x 1; GbE LAN x 1 USB2.0 x 2; USB3.2 Gen2 x 2 Display port x 2; Power button x 1; Antenna port x 4 Audio jack (Mic-in, Line-out) x 2 Remote power on/off switch and IGN control x 1
