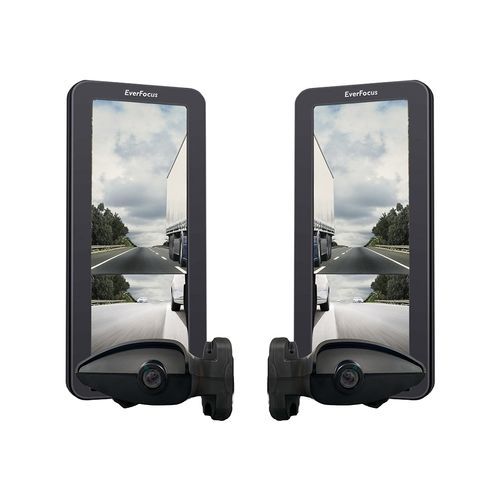

Electric rear-view mirror EMS12D2

Product
12.3-inch Blind Spot Detection (BSD) electronic mirror, model EMS12D2, designed for vehicle camera and driver-assistance systems.

Key Features

• [Preliminary Release]
• Automatic backlight brightness adjustment
• 12.3-inch TFT-LCD, supports 2-split display
• Supports starlight-level night vision
• WDR strong-light suppression
• DVR image storage (SD card)
• Supports BSD (blind spot detection)
• IR remote control operation and settings
• Wide input voltage: 19–32 V DC

Overview / Technical Table
Model Name: EMS12D2
Screen Type: TFT-LCD
Screen Size: 12.3 "
Resolution: 1920 x 720
Backlight: LED
Brightness: 850 cd/m2
Visible Range: 291.4 x 108.9
Viewing Angle: 85 / 85 / 85 / 85
FOV (H x V x D): 126 x 65 x 158 (wide-angle lens); 200 x 110 x 200 (fisheye)
Storage: 1 x SD Card
Video Input (Video Format): AHD 720P
Video Output (System Format): AHD / CVBS
Function: Support blind spot detection (BSD)
Operation Method: IR remote control
Operating Temperature: -30 °C ~ 80 °C / -22 °F ~ 167 °F
Power Supply: 19V - 32V DC (MAX: 30V)
Power Consumption: 24W
Dimensions (L x W x H): 343 x 145 x 136 mm / 13.5” x 5.7” x 5.35”

Specifications

• Model Name: EMS12D2
• Screen Type: TFT-LCD
• Screen Size: 12.3 "
• Resolution: 1920 x 720
• Backlight: LED
• Brightness: 850 cd/m2
• Visible Range: 291.4 x 108.9
• Viewing Angle: 85 / 85 / 85 / 85
• FOV (H x V x D): 126 x 65 x 158 (wide-angle lens); 200 x 110 x 200 (fisheye)
• Storage: 1 x SD Card
• Video Input: AHD 720P
• Video Output: AHD / CVBS
• Function: Support blind spot detection (BSD)
• Operation Method: IR remote control
• Operating Temperature: -30 °C ~ 80 °C (-22 °F ~ 167 °F)
• Power Supply: 19V - 32V DC (MAX: 30V)
• Power Consumption: 24W
• Dimensions: 343 x 145 x 136 mm (13.5” x 5.7” x 5.35”)
