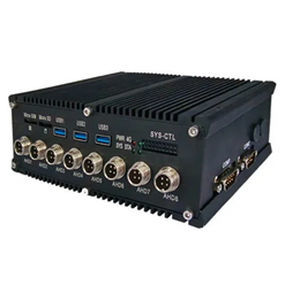

Video recorder EMV08H2Dvision processingfor vehiclesfor automobiles
Add to favorites
Compare this product
Characteristics
- Type
- video
- Measured physical value
- vision processing
- Applications
- for vehicles, for automobiles
- Number of channels
- 8-channel
- Other characteristics
- Ethernet, DVR, rugged, with integrated data logger, WiFi
Description
Product Overview
Specifications
Model name: EMV08H2D
Number of Channels: 8CH
Audio Outputs: 1x φ3.5mm audio out, 1x φ3.5mm microphone, 2x speaker outputs (10W @ 8Ω)
Ethernet: 2 x 10/100/1000Mbps Ethernet
Wi‑Fi: 1 x Wi‑Fi 2.4GHz/5GHz, 802.11a/b/g/n/ac/ax
4G / 5G: 1 x Micro SIM slot for Mini‑PCIe 4G LTE/5G module (optional)
SD Card: 1 x MicroSD (TF) Card
Power Source: 9V - 36V DC
Operating Temperature: -40°C to 60°C / -40°F to 140°F
Dimensions (W x D x H): 182 x 120 x 63 mm
Certificates: CE, FCC, BSMI, EN50155, MIL‑STD‑810G (shock & vibration)
Technical specifications
- Preliminary release — project‑based configuration available
- Up to 8CH 1080p @ 30FPS display and recording
- Supports multiple screens with independent layouts, up to 5 displays
- Multiple storage options: 1x MicroSD, 1x 2.5" SSD, 1x M.2 NVMe
- Flexible network interfaces: 2x 1GbE RJ45, built‑in Wi‑Fi & Bluetooth, optional 4G/5G modules
- Multiple serial interfaces: 2x UART, 2x CAN BUS, 4x RS232, 1x RS485
- Integrated smart driving assistance: ADAS, BSD, DSM
- Mechanical design: full aluminum chassis, fanless; M12 aviation connectors
- Certifications for transport and industrial use: CE, FCC, BSMI, EN50155, MIL‑STD‑810G (shock & vibration)
- Wide operating temperature: -40°C to 60°C
- Wide DC input range: 9V to 36V
Specifications
Model name: EMV08H2D
Number of Channels: 8CH
Audio Outputs: 1x φ3.5mm audio out, 1x φ3.5mm microphone, 2x speaker outputs (10W @ 8Ω)
Ethernet: 2 x 10/100/1000Mbps Ethernet
Wi‑Fi: 1 x Wi‑Fi 2.4GHz/5GHz, 802.11a/b/g/n/ac/ax
4G / 5G: 1 x Micro SIM slot for Mini‑PCIe 4G LTE/5G module (optional)
SD Card: 1 x MicroSD (TF) Card
Power Source: 9V - 36V DC
Operating Temperature: -40°C to 60°C / -40°F to 140°F
Dimensions (W x D x H): 182 x 120 x 63 mm
Certificates: CE, FCC, BSMI, EN50155, MIL‑STD‑810G (shock & vibration)
Technical specifications
- Model name: EMV08H2D
- Channels: 8CH
- Video: Up to 1080p @ 30FPS display and recording
- Multi‑display support: Up to 5 displays with independent layouts
- Storage: 1x MicroSD, 1x 2.5" SSD, 1x M.2 NVMe
- Network: 2x 1GbE RJ45, built‑in Wi‑Fi (2.4/5GHz) & Bluetooth, optional 4G/5G modules
- Serial interfaces: 2x UART, 2x CAN BUS, 4x RS232, 1x RS485
- Audio: 1x 3.5mm audio out, 1x 3.5mm microphone, 2x speaker outputs (10W @ 8Ω)
- Smart driving features: ADAS, BSD, DSM
- Construction: Aluminum chassis, fanless design, M12 aviation connectors
- Environmental: Operating temperature -40°C to 60°C (-40°F to 140°F)
- Power input range: 9V to 36V DC
- Dimensions: 182 x 120 x 63 mm
- Certifications: CE, FCC, BSMI, EN50155, MIL‑STD‑810G (shock & vibration)
