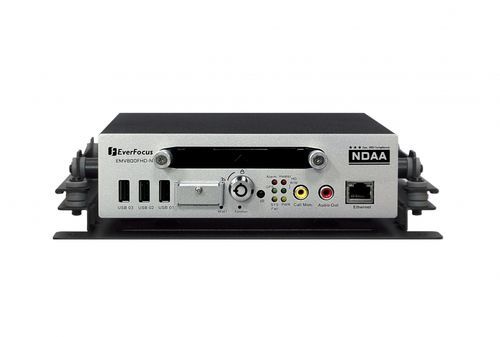

Video recorder EMV800 FHD-Naccelerationfor mobile machinesvideo surveillance
Add to favorites
Compare this product
Characteristics
- Type
- video
- Measured physical value
- acceleration
- Applications
- video surveillance, for vehicles, for mobile machines
- Number of channels
- 8-channel
- Other characteristics
- Ethernet, DVR, rugged, WiFi, wireless, GPS tracking
Description
Overview
Key specifications
Applications & compliance
- Full HD mobile DVR compatible with AHD/TVI/CVI/CVBS inputs
- 8 channels with up to 1080p recording resolution
- Supports H.264 and H.265 video compression
- UTC remote control support and IR remote operation
- Single 2.5" SSD bay (built-in 1 TB; configurable up to 4 TB)
- Dual 1GbE network ports (RJ-45 x1, M12 x1)
- Integrated 3-axis G-sensor and multiple serial interfaces (RS232/RS485)
- Built-in temperature control (2 heaters) and M12 aviation connectors for rugged installations
- Optional Wi‑Fi (M.2 Key-E) and 4G/5G connectivity (M.2 Key-B, project-based); GPS support
- Mobile app support (MobileFocus) and fleet monitoring via Web viewer / XFleet
- Certifications: CE, FCC, BSMI, EN50155, MIL-STD-810G (shock & vibration)
Key specifications
- Model: EMV800 FHD-N
- Channels: 8 CH
- Recording resolutions: 1080p / 720p / 960H / D1
- Video compression: H.264 / H.265
- Audio I/O: 8 inputs, 1 output (RCA)
- Storage: 2.5" SSD x1 (built-in 1 TB; configurable up to 4 TB); SD/SDHC (max. 32 GB) for alarm backup
- Network: 1GbE x2 (RJ-45 x1, M12 x1)
- Interfaces: RJ-45 x1, RS232 x3, RS485 x1, USB x3
- Display outputs: VGA x1; Call monitor BNC x1 / RCA x1
- GSensor: 3-axis embedded
- PTZ control: Supported
- Power: DC 9–36 V; Consumption: 20W (60W with heaters)
- Operating temperature: -40°C to 55°C
- Dimensions (W x D x H): 229.6 x 218 x 63.4 mm (with anti-vibration bracket)
- Weight: 2.6 kg (with anti-vibration bracket)
Applications & compliance
- Designed for fleet and mobile surveillance: buses, coaches, rail vehicles, commercial trucks and public transport
- Ruggedized hardware and wide operating temperature range for harsh environments
- Flexible connectivity and optional cellular/Wi‑Fi modules for remote monitoring and fleet management
- Complies with transport and industrial standards (EN50155, MIL-STD-810G) for shock and vibration
