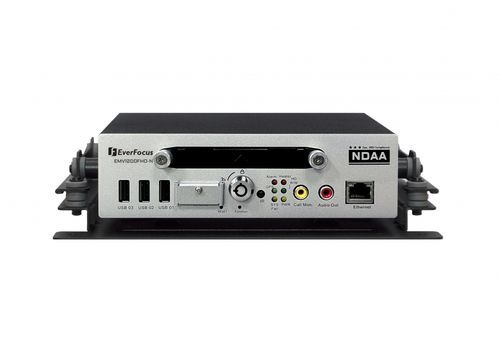

Video recorder EMV1200 FHD-Naccelerationfor mobile machinesindustrial
Add to favorites
Compare this product
Characteristics
- Type
- video
- Measured physical value
- acceleration
- Applications
- network, video surveillance, industrial, for vehicles, for mobile machines, for cameras
- Number of channels
- 12-channel
- Other characteristics
- Ethernet, DVR, rugged, high-definition, with integrated data logger, WiFi, GPS tracking
Description
Overview
Technical specifications
Connectivity & integration
Environmental & mechanical
Certifications & compliance
Applications & deployment
Ordering & support
- 12-channel mobile DVR for vehicle and mobile surveillance (AHD/TVI/CVI/CVBS)
- Records up to 1080p Full HD using H.264 compression
- Built-in 2.5" SSD (1TB standard, up to 4TB) and SD backup support
- Rugged connectivity with 1GbE (RJ45 x1, M12 x1), M12 aviation connectors and multiple serial interfaces
- Embedded 3-axis G-sensor, GPS and optional WiFi/4G/5G modules
- Wide operating temperature and internal heaters for harsh environments
Technical specifications
- Model name: EMV1200 FHD-N
- Channels: 12 CH
- Video compression: H.264
- Recording resolution: Up to 1080p (1080p / 720p / 960H / D1 / 2CIF / CIF / QCIF)
- Recording modes: Event, Normal + Event
- Recording rates: NTSC 15fps @1080p, 30fps @ other resolutions; PAL 12.5fps @1080p, 25fps @ other resolutions
- Audio: 12 inputs, 1 RCA output
- Storage: 2.5" SSD x1 (Built-in 1TB, Max. 4TB); SD/SDHC (Max. 32GB) for backup (project-based)
- Interfaces: RJ-45 x1, RS232 x3, RS485 x1, USB x3, VGA x1, BNC/RCA call monitor
Connectivity & integration
- Network: 1GbE x2 (RJ45 x1, M12 x1)
- Wireless: WiFi via M.2 Key-E 2230 (supported)
- Cellular: 4G/5G via M.2 Key-B 3052/3042 (project-based)
- GPS supported for vehicle tracking
- Supports Web viewer, MobileFocus app and XFleet fleet management
Environmental & mechanical
- Operating temperature: -40°C to 55°C (-40°F to 131°F)
- Power: DC 9–36 V; Consumption 20W (60W with heater on)
- Dimensions (W x D x H): 229.6 x 218 x 63.4 mm
- Weight: 2.6 kg (with anti-vibration bracket)
- Anti-vibration bracket included (shock & vibration tolerance)
Certifications & compliance
- CE, FCC
- MIL-STD-810G (shock & vibration)
- EN50155, SAE-J1455 (available by project)
Applications & deployment
- Fleet and public transport video recording
- Mining, construction and heavy vehicle surveillance
- Critical mobile surveillance where wide temperature range and rugged connectors are required
Ordering & support
- Model: EMV1200 FHD-N; customization options available (storage, cellular modules, project-specific certifications)
- Controls: IR remote, mouse, Web UI; PTZ control supported
- Contact sales for project integration, fleet management setup and optional certification scope
