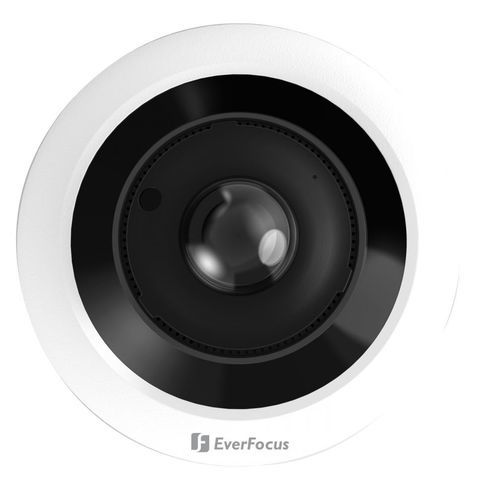

Digital camera EFN1980-SG
WDRfor public spacefor parking lot management

Digital camera - EFN1980-SG - EverFocus Electronics Corporation - WDR / for public space / for parking lot management
Digital camera - EFN1980-SG - EverFocus Electronics Corporation - WDR / for public space / for parking lot management
Digital camera - EFN1980-SG - EverFocus Electronics Corporation - WDR / for public space / for parking lot management - image - 2
Add to favorites
Compare this product

Characteristics

Technology
digital, WDR
Applications
for public space, for parking lot management
Spectrum
IR, visible, full-color
Sensor
CMOS
Interface
PoE, Ethernet, IP, ONVIF
Resolution
12 Mpx
Other characteristics
outdoor, IP66, dome, with microphone, panoramic, with infrared illuminator

Description

Overview
  • 12 MP progressive scan CMOS sensor with 1.6 mm fisheye lens for full 360° panoramic view
  • Multi-streaming (H.265 / H.264) with triple stream capability
  • True Day/Night (ICR) plus IR illumination: 3 SMD LEDs, effective up to 10 m (scene dependent)
  • D-WDR support and AGC for improved image detail in varying lighting
  • Two-way audio (built-in microphone and speaker), ONVIF (Profile S/G)
  • Local storage via microSD (up to 256 GB) and mobile live view (iOS & Android)
  • Power options: 12VDC or PoE (IEEE802.3af Class 3); weather-proof IP66 enclosure


Technical specifications
Model: EFN1980-SG
Pickup device: 12 MP progressive scan CMOS sensor
Lens: 1.6 mm lens
View angle (FOV): 360°
Maximum resolution: 4000 x 3000 @ 15 fps
Shutter: 1/5 ~ 1/20,000 s
F No.: F2.0 ± 5%
Minimum illumination: Color 0.01 Lux @ F1.6 (AGC On); B/W 0 Lux @ IR On
S/N ratio: 39.5 dB (AGC Off)
Day/Night: True Day/Night with ICR
IR LED: 3 units (SMD); IR range: up to 10 m / 32.8 ft (scene dependent)
Video compression: H.265 / H.264
Streaming capability: Triple streams supported
Frame rate: 15 fps (max at full resolution)
WDR: D-WDR
Audio: Built-in microphone x1, speaker x1; two-way audio supported
Storage: Micro SD/SDHC/SDXC slot, up to 256 GB
Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
Interface / Connector: RJ-45 (10M/100M), DC jack
Power supply: 12VDC or PoE IEEE802.3af (Class 3)
Max. power consumption: 12VDC ≤ 9.6W / PoE 3.8–9.6W
Alarm I/O: 1 input / 1 output
Dimensions (Ø x H): 120 x 56 mm / 4.68” x 2.18”
Weight: 400 g / 0.88 lb
Operating temperature: -30°C to 55°C / -22°F to 131°F
Humidity: ≤95% non-condensing
Ingress protection: IP66
Certificates: CE, FCC, RoHS

Applications
  • Wide-area indoor and outdoor surveillance: retail, warehouses, transport hubs, factories, parking and public spaces
  • Ceiling- or surface-mounted 360° coverage where single-camera panoramic monitoring is required
  • Integration with VMS and NVR systems via ONVIF for centralized monitoring and recording


Compliance & manufacturer
  • Manufacturer: EverFocus Electronics Corp.
  • Certifications: CE, FCC, RoHS
  • Environment: IP66 rated for weather resistance; operating range -30°C to 55°C
