Video recorder Ares64+N
networkvideo surveillancedisplay

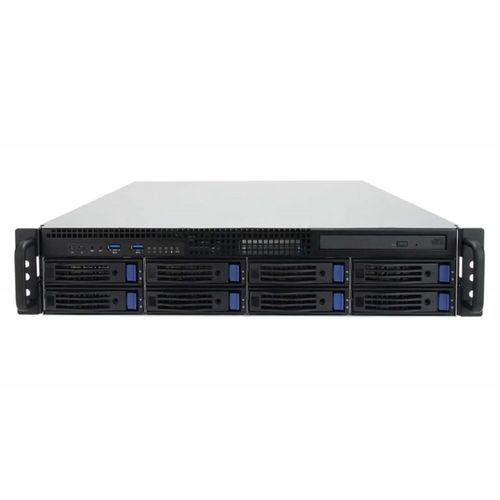

Video recorder - Ares64+N - EverFocus Electronics Corporation - network / video surveillance / display
Video recorder - Ares64+N - EverFocus Electronics Corporation - network / video surveillance / display
Add to favorites
Compare this product

Characteristics

Type
video
Applications
network, video surveillance, display
Number of channels
64-channel
Other characteristics
USB, Ethernet

Description

Highlights
  • Large storage capacity: Default 20 TB, scalable to 160 TB (RAID 5, project)
  • High-speed networking: 2 x 10 GbE, 2 x GbE, 1 x management LAN
  • Wide RAID support: RAID 0, 1, 10(1E), 3, 5, 6, 30, 50, 60 (project)
  • Multiple video outputs: 4 x Mini DisplayPort, 1 x DisplayPort, 1 x HDMI, 1 x VGA


Features
  • Intel i7-13700 Gen13 16-core CPU
  • NVIDIA RTX A400 GPU (768 CUDA cores)
  • Built-in 2 TB M.2 NVMe PCIe Gen3 x4 storage
  • Pre-installed Windows 11 IoT Enterprise LTSC and Axxon One VMS; supports third-party VMS
  • Connects up to 64 ONVIF-compatible IP cameras
  • Remote management via Baseboard Management Controller (BMC)
  • 8 removable 3.5-inch HDD bays for easy maintenance
  • 550 W power with 1+1 redundancy option


Specifications
Model: Ares64+N
Operating System: Windows 11 IoT Enterprise LTSC
Number of channels: 64ch (ONVIF compatible IP cameras)
CPU (built-in): Intel i7-13700 Gen13 | 16 cores, base 2.1 GHz, 30 MB, LGA1700
GPU (built-in): NVIDIA RTX A400 | 768 CUDA cores, 24 Tensor cores (3rd gen), 6 RT cores (2nd gen)
RAM: 32 GB DDR5 4800 (non-ECC UDIMM)
Built-in storage: 2 TB M.2 NVMe PCIe Gen3 x4
Internal HDD bays: 8 x 3.5-inch removable trays
Default capacity: 20 TB (no RAID); Max capacity: 160 TB (140 TB + parity) with RAID 5 (project)
Ethernet: 2 x 10 GbE, 2 x GbE, 1 x Management LAN
USB: Rear 2 x USB3.2 Gen1; Front 1 x USB3.2 Gen1, 1 x USB2
Power input: 90–264 VAC, 550 W (1+1 redundant)
Operating temperature: 10°C to 35°C
Dimensions (W x D x H): 444.2 x 572.7 x 87 mm (17.49 x 22.55 x 3.43 in)
Storage humidity: 50%–90% non-condensing


Technical specifications
  • Model: Ares64+N
  • OS: Windows 11 IoT Enterprise LTSC
  • Channels: 64 ONVIF IP cameras
  • CPU: Intel i7-13700 Gen13, 16 cores
  • GPU: NVIDIA RTX A400 (768 CUDA cores)
  • RAM: 32 GB DDR5 4800
  • Built-in storage: 2 TB M.2 NVMe PCIe Gen3 x4
  • Internal HDD bays: 8 x 3.5-inch removable trays
  • Default capacity: 20 TB; Max (project, RAID 5): 160 TB
  • Network: 2 x 10 GbE, 2 x GbE, 1 x Management LAN
  • Video outputs: 4 x Mini DP, 1 x DP, 1 x HDMI, 1 x VGA
  • USB: Rear 2 x USB3.2 Gen1; Front 1 x USB3.2 Gen1, 1 x USB2
  • Power: 90–264 VAC, 550 W (1+1 redundant)
  • Operating temp: 10°C to 35°C
  • Dimensions: 444.2 x 572.7 x 87 mm
