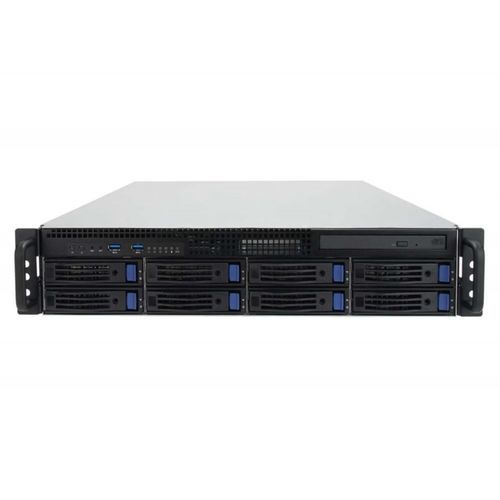

Video recorder Ares64+U

vision processingnetworkvideo surveillance

Highlights

• Large Storage Capacity: 20TB (default), Others (project)
• High-Speed Network: 2 x 10 GbE, 2 x GbE, 1 x Mgmt LAN
• Wide-Range RAID Levels: 0, 1, 10(1E), 3, 5, 6, 30, 50, 60 (project)
• Multiple Video Outputs: 4 x Mini DP, 1 x DP, 1 x HDMI, 1 x VGA

Features

• Powered by AMD EPYC 7282 server CPU
• Accelerated by NVIDIA RTX 2000 GPU
• Built-in 2TB M.2 NVMe PCIe Gen4 x4
• Pre-installed Windows 11 IoT Enterprise LTSC + Axxon One VMS
• Supports third-party VMS
• Connects up to 64 ONVIF-compatible IP cameras

Note
Easy remote management via Baseboard Management Controller (BMC)

Specifications
Model: Ares64+U
Operating System: Windows 11 IoT Enterprise LTSC
Number of Channels: 64Ch ONVIF compatible IP cameras
Video outputs: 4 x Mini DisplayPort, 1 x DisplayPort, 1 x HDMI, 1 x VGA
Internal 3.5in HDD: 8 x HDD bays, removable trays
Storage Capacity: 20TB = Capacity: 20TB (No RAID by default); 160TB = Capacity: 140TB + Parity: 20TB (Max with RAID 5, by project)
Ethernet: 2 x 10 GbE, 2 x GbE, 1 x Management LAN
USB: 2 x USB3.2 Gen1 (rear); 1 x USB3.2 Gen1, 1 x USB2 (front)
Power Input: 90 - 264 VAC / 550 Watts (1+1 redundant)
Operating Temperature: 10°C ~ 35°C / 50°F ~ 95°F
Dimensions (W x D x H): 444.2 x 572.7 x 87 mm / 17.49" x 22.55" x 3.43"
Storage Humidity: 50%~90% non-condensing

Technical specifications

• Model: Ares64+U
• Channels: 64 ONVIF IP cameras
• OS: Windows 11 IoT Enterprise LTSC
• CPU: AMD EPYC 7282 (server CPU)
• GPU: NVIDIA RTX 2000
• Built-in Storage: 2TB M.2 NVMe PCIe Gen4 x4
• HDD Bays: 8 x 3.5in removable trays
• Network: 2 x 10 GbE, 2 x GbE, 1 x Mgmt LAN
• Video Outputs: 4 x Mini DP, 1 x DP, 1 x HDMI, 1 x VGA
• Power: 90-264 VAC, 550W (1+1 redundant)
• Operating Temp: 10°C–35°C
• Dimensions: 444.2 x 572.7 x 87 mm
