Video recorder Ares128+S
vision processingnetworkvideo surveillance

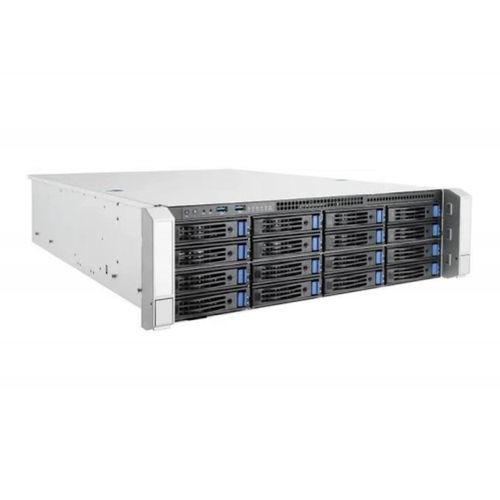

Video recorder - Ares128+S - EverFocus Electronics Corporation - vision processing / network / video surveillance
Video recorder - Ares128+S - EverFocus Electronics Corporation - vision processing / network / video surveillance
Video recorder - Ares128+S - EverFocus Electronics Corporation - vision processing / network / video surveillance - image - 2
Add to favorites
Compare this product

Characteristics

Type
video
Measured physical value
vision processing
Applications
network, video surveillance, for cameras
Number of channels
128-channel
Other characteristics
Ethernet, NVR

Description

Highlights
  • Large storage capacity: 224TB max (14TB x 16 bays)
  • High-speed network: 2 x 10 GbE, 1 x Management LAN
  • Multiple I/O ports: 4 x Mini DisplayPort (camera monitoring), 1 x VGA (configuration), 4 x USB


Features
  • Powered by AMD EPYC 7282 server CPU (16-Core, 32-Thread)
  • Accelerated by NVIDIA RTX Pro 2000 Blackwell 16GB GPU
  • Built-in 2TB M.2 NVMe PCIe Gen4.0 x4
  • Pre-installed Windows 11 IoT Enterprise LTSC (2024) and Axxon One VMS; supports other third-party VMS
  • Supports up to 128 ONVIF-compatible IP camera channels
  • Easy remote management via Baseboard Management Controller (BMC)


Technical specifications
  • Model: Ares128+S
  • Operating System: Windows 11 IoT Enterprise LTSC, 2024 (multi-language)
  • Channels: 128 ONVIF-compatible IP cameras
  • CPU (Built-in): AMD EPYC 7282, 2.8–3.20 GHz, 16-Core / 32-Thread, 64MB L3 Cache, 120W TDP
  • GPU (Built-in): NVIDIA RTX Pro 2000 Blackwell 16GB
  • RAM: 64GB DDR4 3200 RDIMM
  • Video outputs: 4 x Mini DisplayPort (monitoring), 1 x VGA (configuration)
  • Internal HDD bays: 16 x 3.5"
  • Storage capacity: 80TB ~ 224TB (max = 14TB x 16)
  • Built-in storage: 2TB M.2 NVMe PCIe Gen4.0 x4
  • Network: 2 x 10 GbE; 1 x Management LAN
  • USB: 2 x USB3.2 Gen1 (rear); 2 x USB2.0 (front)
  • Power input: 90–264 VAC / 550 W (1+1 redundant)
  • Operating temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Dimensions (W x D x H): 625 x 482.6 x 131 mm (24" x 19" x 5.25")
  • Storage humidity: 20% ~ 90% non‑condensing
  • Remote management: Baseboard Management Controller (BMC)
