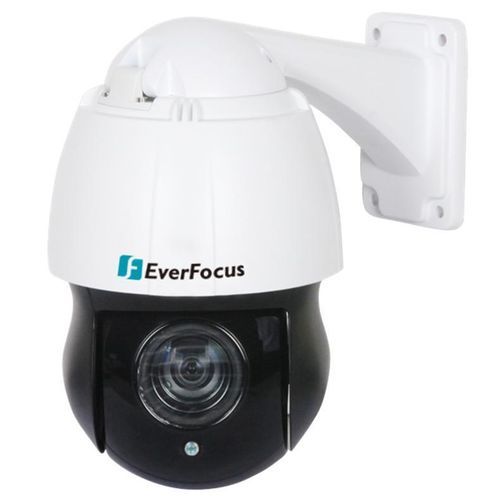

Analog camera EPA6220-B86industrialfor public spaceCCTV
Add to favorites
Compare this product
Characteristics
- Technology
- analog
- Applications
- industrial, for public space
- Function
- monitoring, security, CCTV
- Spectrum
- IR, visible
- Sensor
- CMOS
- Interface
- PAL/NTSC, with analog output
- Resolution level
- full HD, 1920 x 1080
- Resolution
- 2 Mpx
- Other characteristics
- day/night, IP66, optical zoom, pan-tilt-zoom, PTZ, with infrared illuminator
Description
Key features
Technical specifications
Applications & installation
Certifications & environment
- 1/3" 2MP Sony CMOS sensor, 1080p resolution
- 20x optical zoom lens (4.7mm–94mm)
- True day/night with IR cut filter; IR illumination (6 LED + 3 laser) up to 150 m
- Selectable video input: AHD / TVI / CVI / CVBS; NTSC / PAL output
- Supports D-WDR, 2DNR and 3DNR
- 220 preset positions; horizontal rotation up to 360°
- IP66 metal housing for outdoor use
- Supports OSD menu, P2P and intelligent IR
Technical specifications
- Model: EPA6220-B86
- Pickup device: 1/3" 2MP Sony CMOS
- Effective pixels / frame rate: 1920 × 1080 @30fps (NTSC) / 1920 × 1080 @25fps (PAL)
- Lens: 20x optical, 4.7mm–94mm
- Shutter: Electronic; NTSC 1/30–1/8,000s; PAL 1/25–1/8,000s
- Minimum illumination: Color 0.002 Lux @ F1.2; B/W 0.0002 Lux @ F1.2
- S/N ratio: 6 dB
- IR: 6 LEDs + 3 laser diodes; range up to 150 m
- Video formats: AHD / TVI / CVI / CVBS selectable; NTSC / PAL output
- WDR: D-WDR; DNR: 2DNR, 3DNR
- Flip / Mirror: horizontal and vertical flip functions
- Power supply: 12 VDC, 3 A; max power consumption ≤ 25 W
- Dimensions: 247 mm × 140 mm
- Weight: 3.5 kg
Applications & installation
- Designed for outdoor perimeter and industrial surveillance
- Supports multiple analog HD formats for integration with existing CCTV systems
- 220 presets and 360° pan allow wide-area automated monitoring
- OSD, P2P and intelligent IR simplify configuration and remote operation
- Power via 12 VDC (verify supply capacity for IR/laser operation)
Certifications & environment
- Ingress protection: IP66 (metal housing)
- Operating temperature: outdoor −40 ~ 60 °C; indoor 0 ~ 40 °C
- Certifications: CE, FCC, RoHS
