Atomizing nozzle EF5010SS

for liquidsstainless steelNPT

Overview

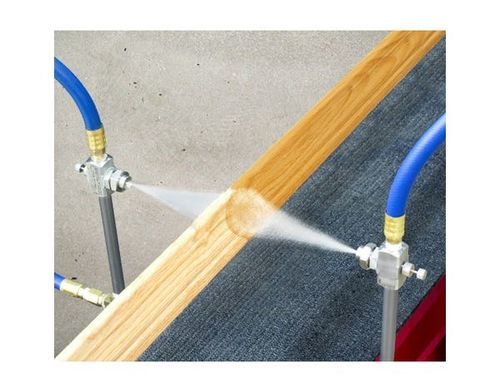

EXAIR's 1/4 FNPT external-mix round pattern atomizing nozzles deliver a high volume of liquid in a circular spray pattern for spot treatments, rinsing and localized coating. External mixing allows independent adjustment of air and liquid flows for precise atomization and process control in pressure-fed systems.

Applications

• Washing
• Rinsing
• Coating
• Cooling
• Quenching
• Wetting (moistening)
• Humidification
• Dust control

Advantages

• Independent air and liquid adjustment for optimal atomization
• Maximizes liquid dispersion while minimizing consumption
• Interchangeable air and liquid caps
• Compact, versatile design for spot and irregular part coverage
• All-stainless-steel construction for industrial environments
• Fine atomization with controlled air usage

Materials
Atomizing nozzle components: Type 303 Stainless Steel. All EXAIR atomizing nozzles use Type 303 stainless steel to resist high temperatures and corrosive conditions. Maximum recommended operating temperature: 800°F (426°C).

Accessories
Mounting brackets are available for 1/8 FNPT, 1/4 FNPT and 1/2 FNPT models to provide secure installation. Brackets are constructed of Type 301 stainless steel.

Technical specifications

• Series: ER series (External Mix Round Pattern Atomizing Nozzles)
• Connection: 1/4 FNPT (shown models are 1/4 NPT)
• Example model variants: ER1010SS, ER1020SS, ER1030SS, ER1040SS, ER1050SS
• Page SKU / product code for shown product: PER1010SS
• Material: Type 303 Stainless Steel (nozzles); mounting brackets: Type 301 Stainless Steel
• Maximum operating temperature: 800°F (426°C)
• Function: External mix — air and liquid flows controlled independently for pressure-fed applications
• Primary uses: washing, rinsing, coating, cooling, quenching, wetting, humidification, dust control
• Performance: detailed Dimensions & Performance matrix available — consult page for GPH/LPH and SCFM/SLPM values per model and pressure
• Spray pattern: round (not flat)
• Construction: all stainless-steel atomizing components; interchangeable air and liquid caps
