Humidity nozzle AW9010SS

spraycleaningcooling

Description

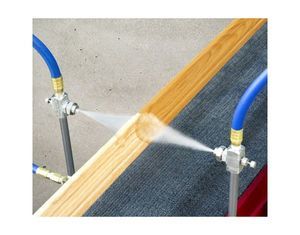

EXAIR's PAW2010SS is a 1/4 FNPT air atomizing nozzle featuring a no-drip internal-mix design and a wide-angle round spray pattern. The nozzle positively shuts off liquid flow when compressed air stops, preventing drips and conserving fluid. Adjustable from a fine mist to a heavy soaking spray, it is intended for pressure-fed systems that do not require independent air and liquid control.

Applications

• Washing
• Rinsing
• Coating
• Cooling
• Quenching
• Wetting (moistening)
• Humidification
• Dust control and mitigation

Advantages

• Positive no-drip shutoff when air is off
• Adjustable spray intensity: light mist to heavy spray
• Maximizes liquid dispersion while minimizing consumption
• Interchangeable liquid and air caps for flexibility
• Compact, stainless steel construction for industrial environments
• Low air consumption with fine atomization

Materials

• Type 303 stainless steel construction for the atomizing nozzle; suitable for elevated temperatures and corrosive environments. Maximum recommended operating temperature: 800°F (426°C).

Accessories

• Mounting brackets available for 1/8 FNPT, 1/4 FNPT and 1/2 FNPT models; brackets constructed of Type 301 stainless steel.

Dimensions & Performance
Detailed dimension and performance tables are provided for 1/8, 1/4 and 1/2 FNPT model groups, including spray diagrams and numeric tables (air pressure vs. liquid pressure vs. liquid flow vs. air flow) with values in PSI/BAR, GPH/LPH and SCFM/SLPM across standard pressures.

Spray Dimensions
Spray width and depth measurements are provided by FNPT size and by model at multiple air pressures (values in inches and cm).

Technical specifications

• Product type: No-drip internal-mix wide-angle round pattern air atomizing nozzle
• Brand: EXAIR
• Available inlet sizes: 1/8 FNPT, 1/4 FNPT, 1/2 FNPT
• Construction: Type 303 stainless steel (nozzle); mounting brackets: Type 301 stainless steel
• Maximum recommended operating temperature: 800°F (426°C)
• Adjustability: Light mist to heavy soaking spray
• Function: Positive shutoff of liquid flow when compressed air is off (no-drip)
• Typical applications: dust mitigation, humidification, cooling, coating, washing, rinsing, quenching, wetting
• Accessories: Mounting brackets for all inlet sizes
• Interchangeable parts: Liquid and air caps
• SKU: PAW2010SS
• Product ID: 3663
• Price: $420.00
