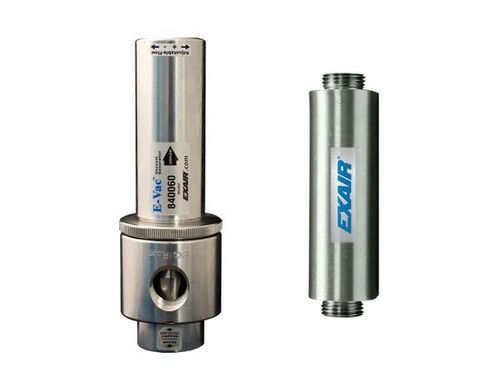

Single-stage Venturi ejector 841008M

for suction unitswith push-in fittingcompact

Overview
The Adjustable E-Vac® is a compressed‑air powered vacuum generator series from EXAIR. Vacuum level and flow are user‑adjustable to match application requirements. Units are compact, maintenance‑free (no moving parts) and suited for a wide range of industrial pick‑and‑place, clamping, lifting, packaging and surface‑handling tasks. The Straight‑Through Muffler version is recommended for particulate environments and provides superior sound reduction (up to 26 dBA).

Applications

• Pick-and-place of parts and assemblies
• Bag and package opening
• Label placement and handling
• Vacuum forming and mold evacuation
• Vacuum filling and leak testing
• Container evacuation and vacuum packaging
• Clamping, chucking and robotic end‑of‑arm tooling
• Paper alignment and feed systems
• Vacuum presses for veneers and laminates

Advantages

• Adjustable vacuum level via exhaust rotation with lock ring
• Optimized air consumption relative to required vacuum
• No moving parts — maintenance free
• Straight‑Through muffler passes particulates without clogging
• Quiet operation (Straight‑Through muffler up to 26 dBA)
• Instant response and stable single‑stage vacuum
• Lightweight 6061 aluminum construction
• Easy mounting at point of use; portable

Models / Configurations (summary)
Adjustable E‑Vac Only: 840008 — 8.2 SCFM (232 SLPM); 840015 — 15.4 SCFM (436 SLPM); 840030 — 26.4 SCFM (748 SLPM); 840060 — 62.7 SCFM (1,775 SLPM).
With Straight‑Through Muffler: 840008M, 840015M, 840030M, 840060M.
Kits (various): basic kits (841xxx), kits with muffler (841xxM), deluxe kits with filter & regulator (842xxx / 842xxxM).

Key Performance Notes
- Factory set to 15 in Hg (≈51 kPa); maximum ≈25 in Hg (≈85 kPa) on non‑porous surfaces (higher vacuum increases air consumption).
- Vacuum and flow adjusted by loosening lock ring and rotating exhaust; retighten to secure.
- Model selection provides different air consumption / flow capabilities (see models above).

Accessories and System Components
EXAIR offers Standard and Straight‑Through mufflers, fittings, push‑in connectors, polyurethane tubing (1/4" and 3/8"; lengths to 50'), check valves, vacuum gauges (0–30 in Hg), mounting clip, and optional filter/regulator. Recommendations include:

• Standard Muffler: closed end, for dust‑free environments
• Straight‑Through Muffler: resists debris buildup and gives best noise reduction
• Vacuum tubing: multiple sizes and lengths for system layout
• Check valves and swivel/bulkhead fittings to secure vacuum and simplify assembly
• Automatic drain separators and oil removal filters for compressed air supply

Gallery / Kit Notes
Deluxe kits include vacuum pump, cups, fittings, tubing, mounting clip, filter and regulator with coupler. The family is aluminum construction and available in four sizes.

Technical Specifications

• Series: Adjustable E‑Vac®
• Construction: 6061 aluminum
• Operation: compressed‑air powered (no electricity required)
• Adjustable vacuum: factory 15 in Hg (51 kPa); max ≈25 in Hg (85 kPa) on non‑porous surfaces
• Air consumption / flow options: 8.2 SCFM (232 SLPM) — 840008; 15.4 SCFM (436 SLPM) — 840015; 26.4 SCFM (748 SLPM) — 840030; 62.7 SCFM (1,775 SLPM) — 840060
• Maximum flow (other configurations) up to 81 SCFM (2,294 SLPM)
• Sound reduction: Straight‑Through muffler up to 26 dBA
• No moving parts — maintenance free; NPT vacuum port
• Available accessories: mufflers, check valves, gauges, fittings, tubing, filter separators, regulators, solenoid valves
