High-vacuum vacuum ejector Model 812008 E-Vac

Venturisingle-stagefor the plastics industry

Overview
Deluxe kits add a filter separator and pressure regulator to the included In-Line E-Vac®, vacuum cups, fittings and tubing. These single-stage, cylindrical vacuum generators are compact and simple to mount at the point of use. Kits are supplied with vacuum cups, fittings and tubing and can be attached by threading directly to a compressed air line or using the included mounting clip. High vacuum units reach up to 27" Hg (91 kPa) with vacuum flow dependent on model; they are typically used for non-porous materials such as glass, steel sheet and plastic. Choose the Standard Muffler (closed end) for dust-free environments or the Straight-Through Muffler where particulates are present to avoid debris buildup. Straight-Through Mufflers provide the best sound reduction (up to 26 dBA).

Applications

• Pick-and-place of parts and components
• Bag and package opening
• Label placement and handling
• Vacuum forming and mold evacuation
• Vacuum filling and leak testing
• Evacuation of containers and clamping/chucking
• Paper alignment and feeding in printing equipment
• Vacuum packaging and surface mounting
• Vacuum presses for veneers and laminates
• Carton forming and robotic tooling
• Vacuum liquid handling for testing

Advantages

• Compact, portable design
• Single-stage venturi eliminates vacuum fluctuations
• Quiet operation (optional mufflers available)
• Instantaneous vacuum generation
• Easy mounting at point of use (thread to air line or mounting clip)
• Lightweight, durable 6061 aluminum construction
• No moving parts — minimal maintenance
• Multiple models to match required flow and vacuum
• Fast response to reduce cycle time
• Safe pneumatic operation — no electricity required

Models / Kits (selection)
Example product SKU shown on page header: P812002H (configurable product).

E-Vac High Vacuum Generators — model examples (Non-Porous)
810002 — 2.3 SCFM (65 SLPM)
810003 — 3.3 SCFM (93 SLPM)
810006 — 6.2 SCFM (176 SLPM)
810008 — 8.4 SCFM (238 SLPM)
810013 — 13.2 SCFM (374 SLPM)
810023 — 23.1 SCFM (654 SLPM)
810031 — 30.8 SCFM (872 SLPM)
Max vacuum for listed models: 27" Hg (91 kPa). Vacuum flow and air consumption vary by model and muffler option.

Kits — examples shown in product tables
E-Vac Only: 810002, 810003, 810006, 810008, 810013, 810023, 810031
E-Vac Kit With No Muffler (includes E-Vac, vacuum cups, fittings, tubing, mounting clip): 811002, 811003, 811006, 811008, 811013, 811023, 811031
E-Vac Deluxe Kit With No Muffler (includes E-Vac, vacuum cups, fittings, tubing, mounting clip, filter & regulator): 812002, 812003, 812006, 812008, 812013, 812023, 812031
E-Vac With Standard Muffler: 810002H, 810003H, 810006H, 810008H, 810013H, 810023H, 810031H
E-Vac Kit With Standard Muffler: 811002H, 811003H, 811006H, 811008H, 811013H, 811023H, 811031H
E-Vac Deluxe Kit With Standard Muffler: 812002H, 812003H, 812006H, 812008H, 812013H, 812023H, 812031H
E-Vac With Straight Through Muffler: 810002M, 810003M, 810006M, 810008M, 810013M, 810023M, 810031M
E-Vac Kit With Straight Through Muffler: 811002M, 811003M, 811006M, 811008M, 811013M, 811023M, 811031M
E-Vac Deluxe Kit With Straight Through Muffler: 812002M, 812003M, 812006M, 812008M, 812013M, 812023M, 812031M

Accessories (selection)

• Mufflers — Standard (closed end) and Straight-Through (recommended for particulate environments; best sound reduction up to 26 dBA)
• Fittings and tubing — push-in connector fittings and polyurethane vacuum tubing (available lengths: 10', 20', 30', 40', 50'); minimize tubing length for best attach/release times
• Check valve — vacuum check valve to maintain vacuum on air loss; high flow with minimal restriction
• Vacuum gauge — models for 0–30" Hg
• Push-in connectors, swivels, branch tees, bulkhead and union connectors — multiple sizes and thread types
• Mounting clip — strap-mounted clip included in many kits
• Automatic drain filter separators and oil-removal filters recommended for air preparation; pressure regulators and solenoid valves for control

Performance (summary)
High vacuum units available up to 27" Hg (91 kPa). Vacuum flow and air consumption depend on selected model and muffler option. Example flows (SCFM at 80 PSIG): 2.3, 3.3, 6.2, 8.4, 13.2, 23.1, 30.8 SCFM. Higher model numbers correspond to greater flow capacity; evacuation times and detailed performance tables are provided per model in the product specification tables.

Technical specifications

• Product family: In-Line E-Vac® (High Vacuum, Deluxe Kit shown)
• Max vacuum: up to 27" Hg (91 kPa)
• Vacuum flow: varies by model (examples up to 30.8 SCFM / 872 SLPM)
• Construction: 6061 aluminum
• Design: single-stage venturi vacuum generator, no moving parts
• Operation: pneumatic — no electricity required

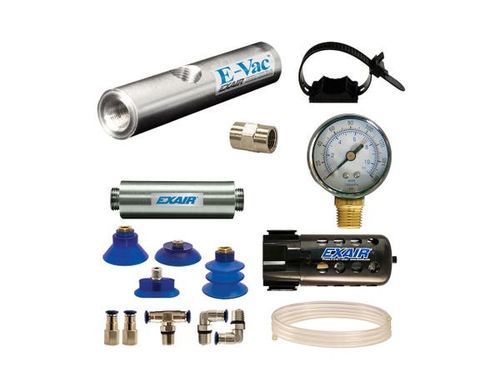

• Kits include (Deluxe): E-Vac unit, assortment of vacuum cups, vacuum fittings (straight/elbow/tee), 10' vacuum tubing, mounting clip, automatic drain filter separator, pressure regulator (with coupler)
• Muffler options: Standard Muffler (closed end) and Straight-Through Muffler (recommended for particulate, best sound reduction)
• Typical applications: pick & place, packaging, labeling, forming, leak testing, robotic tooling, vacuum press, vacuum packaging
• Example SKU on page: P812002H
• Product ID on page: 11085
• Price shown on page (main configuration): $879.00 (USD)
