Suction Venturi ejector 842015

low-noise levelpneumaticcompact

Overview

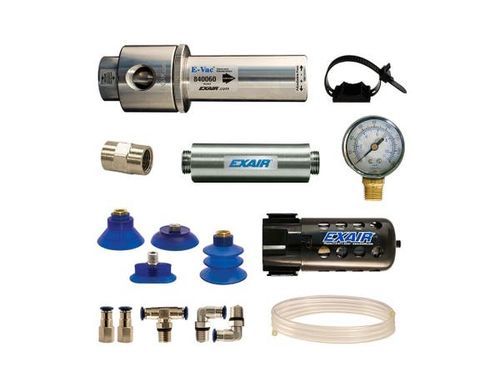

E-Vac® Deluxe Kits include a muffler, an assortment of (4) pairs of vacuum cups (closely matched to the performance of that E-Vac), (2) straight, (2) elbow and (1) tee vacuum fittings, 10' (3m) of vacuum tubing, a filter separator, pressure regulator and a mounting clip. EXAIR's Adjustable E-Vac is a series of low cost, compressed air powered vacuum generators where the vacuum and flow rates can be easily adjusted to suit the application requirements. These vacuum pumps are ideal for a wide variety of pick and place, box opening, clamping, lifting, chucking and surface mounting applications. They are maintenance free and have no moving parts to wear out. Adjustable E-Vac Deluxe Kits give you the ability to experiment with an assortment of vacuum cups.

Applications

• Pick and place of parts and equipment
• Bag/package opening
• Label placement
• Vacuum forming
• Mold evacuation
• Vacuum filling
• Leak testing
• Evacuate containers
• Clamping and chucking
• Paper alignment and feed in printing equipment
• Vacuum packaging
• Surface mounting
• Vacuum press for wood veneers and laminates
• Carton forming
• Robotic tooling
• Vacuum liquids for testing

Advantages

• Easy to set the vacuum level required by the application
• Minimizes compressed air use
• Compact, portable
• No clog design passes dust, dirt, and contaminants straight through
• Single stage design eliminates fluctuations in vacuum
• Quiet operation (optional mufflers available)
• Instantaneous vacuum
• Easy to mount at point of use
• Lightweight, rugged
• No moving parts – no maintenance
• Fast response – increases cycle time
• Durable 6061 aluminum construction
• Safe operation – no electricity

Models / Kits
Adjustable E-Vac Vacuum Generators (Adjustable E-Vac Only):
840008 | 840015 | 840030 | 840060

Adjustable E-Vac With Straight Through Muffler:
840008M | 840015M | 840030M | 840060M

Adjustable E-Vac Kit Without Straight Through Muffler (includes E-Vac, Vacuum Cups, Fittings, Tubing, Mounting Clip):
841008 | 841015 | 841030 | 841060

Adjustable E-Vac Kit With Straight Through Muffler (includes E-Vac, Muffler, Vacuum Cups, Fittings, Tubing, Mounting Clip):
841008M | 841015M | 841030M | 841060M

Adjustable E-Vac Deluxe Kit Without Straight Through Muffler (includes E-Vac, Vacuum Cups, Fittings, Tubing, Mounting Clip, Filter & Regulator):
842008 | 842015 | 842030 | 842060

Adjustable E-Vac Deluxe Kit With Straight Through Muffler (includes E-Vac, Muffler, Vacuum Cups, Fittings, Tubing, Mounting Clip, Filter & Regulator):
842008M | 842015M | 842030M | 842060M

Included with Deluxe Kit (typical)

• Muffler (when selected)
• Assortment of (4) pairs of vacuum cups closely matched to E-Vac performance
• Vacuum fittings: 2 straight, 2 elbow, 1 tee
• 10' (3 m) vacuum tubing
• Filter separator (automatic drain type)
• Pressure regulator (with coupler)
• Mounting clip

Caractéristiques / spécifications techniques

• Marque: EXAIR
• Modèle: Adjustable E-Vac®
• SKU (page product): P842008
• Vacuum range: up to 25" Hg (85 kPa) (maximum on solid non-porous surfaces)
• Factory vacuum setting: 15" Hg (51 kPa)
• Air flow / sizes: available sizes with flow rates up to 81 SCFM (2,294 SLPM) depending on model
• Air consumption examples (at 80 PSIG): 8.2 SCFM (model 840008), 15.4 SCFM (840015), 26.4 SCFM (840030), 62.7 SCFM (840060)
• Evacuation times and vacuum flow curves provided per model (factory data)
• Construction: 6061 aluminum (durable, lightweight)
• No moving parts – maintenance free
• Kits: standard kit and deluxe kit configurations available; deluxe kits include filter separator and pressure regulator
• Typical tubing supplied with kit: 10' (3 m) polyurethane vacuum tubing
• Muffler options: Standard Muffler and Straight-Through Muffler (straight-through recommended where particulate is present)
• Accessories available: mufflers, fittings, check valves, vacuum gauge, push-in connectors, mounting clip, vacuum tubing lengths, etc.
• Price (page): 1050 (USD) — price shown on product page
