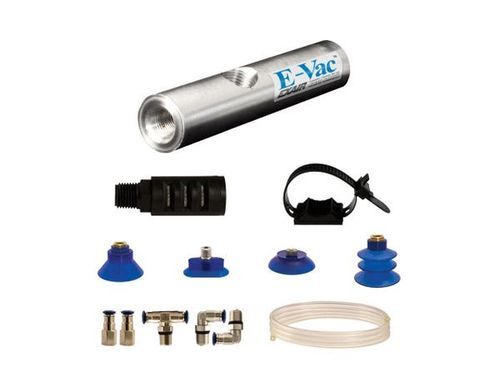

High-vacuum vacuum ejector Model 810002

Venturisingle-stagefor metal panels

Overview
High vacuum units up to 27 in Hg (91 kPa) with vacuum flows up to 15.8 SCFM (447 SLPM) are typically used for non-porous materials such as glass, steel sheet and plastic. These single stage, cylindrical units are compact and easy to mount at the point of use. They can be held in place by threading them directly onto a compressed air line or with the use of a mounting clip.

Applications

• Pick and place of parts and equipment
• Bag/package opening
• Label placement
• Vacuum forming
• Mold evacuation
• Vacuum filling
• Leak testing
• Evacuate containers
• Clamping and chucking
• Paper alignment and feed in printing equipment
• Vacuum packaging
• Surface mounting
• Vacuum press for wood veneers and laminates
• Carton forming
• Robotic tooling
• Vacuum liquids for testing

Advantages

• Compact, portable
• Single stage design eliminates fluctuations in vacuum
• Quiet operation
• Instantaneous vacuum
• Easy to mount at point of use
• Lightweight, rugged
• No moving parts — no maintenance
• Multiple models to suit flow and vacuum level requirements
• Fast response — increases cycle time
• Durable 6061 aluminum construction
• Safe operation - no electricity required

Models (selection table)
E-Vac High Vacuum Generators (non-porous) — choose by SCFM / SLPM:
Model columns (2.3 SCFM / 65 SLPM, 3.3 SCFM / 93 SLPM, 6.2 SCFM / 176 SLPM, 8.4 SCFM / 238 SLPM, 13.2 SCFM / 374 SLPM, 23.1 SCFM / 654 SLPM, 30.8 SCFM / 872 SLPM)
E-Vac Only: 810002, 810003, 810006, 810008, 810013, 810023, 810031
E-Vac Kit With No Muffler: 811002, 811003, 811006, 811008, 811013, 811023, 811031
E-Vac Deluxe Kit With No Muffler: 812002, 812003, 812006, 812008, 812013, 812023, 812031
E-Vac With Standard Muffler: 810002H, 810003H, 810006H, 810008H, 810013H, 810023H, 810031H
E-Vac Kit With Standard Muffler: 811002H, 811003H, 811006H, 811008H, 811013H, 811023H, 811031H
E-Vac Deluxe Kit With Standard Muffler: 812002H, 812003H, 812006H, 812008H, 812013H, 812023H, 812031H
E-Vac With Straight Through Muffler: 810002M, 810003M, 810006M, 810008M, 810013M, 810023M, 810031M
E-Vac Kit With Straight Through Muffler: 811002M, 811003M, 811006M, 811008M, 811013M, 811023M, 811031M
E-Vac Deluxe Kit With Straight Through Muffler: 812002M, 812003M, 812006M, 812008M, 812013M, 812023M, 812031M

Accessories (selection)
Mufflers (standard)
Models: 900800 (Standard Muffler 1/4 MNPT), 900801 (Standard Muffler 3/8 MNPT), 900802 (Standard Muffler 1/2 MNPT)
Straight-Through Mufflers
Models: 890001 (1/4 MNPS), 890002 (3/8 MNPS), 890003 (1/2 MNPS), 890004 (3/4 MNPS), 890005 (1 MNPS)
Check Valves
Models: 900804 (1/4 FNPT), 900805 (3/8 FNPT), 900806 (1/2 FNPT)
Vacuum Gauge
Model: 900811 (0-30 in Hg)
Push-In Connectors (selection)
900773 (1/4 Tube X 1/8 FNPT), 900774 (1/4 Tube X 1/8 Male Global Thread), 900775 (1/4 Tube X 1/4 Male Global Thread), 900776 (1/4 Tube X 3/8 Male Global Thread), 900777, 900778, 900779, 900780 (various sizes)
Push-In Swivel Elbow / Branch Tee / Bulkhead Connectors
Models: 900781–900787 (swivel elbow sizes), 900788–900791 (branch tee sizes), 900792–900793 and 900809–900810 (bulkhead / union connectors)
Vacuum Tubing (polyurethane)
900795-10 (1/4" tubing - 10'), 900795-20 (20'), 900795-30 (30'), 900795-40 (40'), 900795-50 (50'); 900796-10 / -20 / -30 / -40 / -50 (3/8" tubing variants)
Mounting Clip
Model: 900798 (Mounting Clip with Strap)

Performance summary (selected)
High vacuum capability: up to 27 in Hg (91 kPa).
Vacuum flows vary by model (examples): 2.3 SCFM, 3.3 SCFM, 6.2 SCFM, 8.4 SCFM, 13.2 SCFM, 23.1 SCFM, 30.8 SCFM.
Air consumption and noise vary by model and muffler option; see model performance tables for SCFM/SLPM, noise (dBA) and vacuum flow vs. vacuum level.

Technical specifications

• Maximum vacuum: 27 in Hg (91 kPa)
• Vacuum flows: up to 15.8 SCFM (447 SLPM) (platform/typical overall reference), individual models provide flows from ~2.3 to 30.8 SCFM depending on model
• Air consumption: model dependent (see performance data)
• Design: single stage, cylindrical vacuum generator (no moving parts)
• Material: 6061 aluminum construction
• Mounting: thread directly onto compressed air line or use mounting clip
• Muffler options: No muffler, Standard Muffler, Straight-Through Muffler (selection affects noise and particulate handling)
• Kit options: E-Vac Kits and Deluxe Kits (include vacuum cups, fittings, tubing, mounting clip; Deluxe adds filter separator and regulator)
• Typical applications: pick-and-place, vacuum forming, leak testing, packaging, robotic tooling and other industrial vacuum tasks for non-porous materials
• Maintenance: none required for vacuum generator (no moving parts)
