Cooling nozzle 5015

cold airfor machine tools

Overview
The Cold Gun Only (P5015) is a vortex cooling device shipped without the hose kit or filter/separator included with complete Cold Gun Systems. It generates a clean, cold airstream approximately 54°F (30°C) below supply air temperature. The unit operates quietly with no moving parts and is intended for machining and process cooling where liquid coolant or mist systems are not suitable. Available in Standard and High Power versions.

Applications

• Tool sharpening
• Drill and cutter grinding
• Routing
• Plunge and form grinding
• Milling
• Surface grinding
• Drilling
• Tire grinding
• Band sawing
• Plastic machining
• Laser cutting
• Chill rolls
• Setting hot melt adhesives

Advantages

• Improves production rates
• Prevents burning on workpieces
• Extends tool life and reduces breakage
• Improves tolerance control
• Prevents smearing of metals and plastics
• Delivers dry finished parts
• Eliminates wheel loading
• Low operating cost (no coolant required)
• Compact, lightweight, portable
• No moving parts — maintenance free
• Quiet operation
• Operates on compressed air only (no electricity required)

Accessories (description)

• Single Point Hose Kit — concentrated airflow for drilling and grinding applications
• Dual Point Hose Kit — wider coverage for band sawing, milling, chill rolls and hot melt adhesive setting

Cold Gun Systems (examples of available systems)

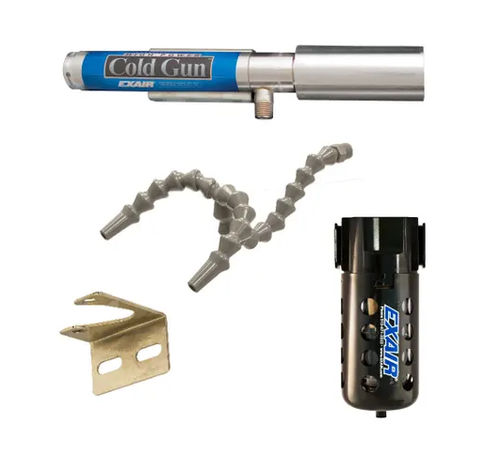

• Model 5215 Cold Gun System (one cold outlet) — includes Cold Gun, Single Point Hose Kit, 3/8" (10 mm) Cone Nozzle, 1-1/4" (32 mm) Fan Nozzle, Manual Drain Filter Separator
• Model 5315 Cold Gun System (two cold outlets) — includes Cold Gun, Dual Point Hose Kit, (2) 1/4" (6 mm) Cone Nozzles, (2) 1" (25 mm) Fan Nozzles, Manual Drain Filter Separator
• Model 5230 High Power Cold Gun System (one cold outlet) — includes High Power Cold Gun, Single Point Hose Kit, 3/8" (10 mm) Cone Nozzle, 1-1/4" (32 mm) Fan Nozzle, Automatic Drain Filter Separator
• Model 5330 High Power Cold Gun System (two cold outlets) — includes High Power Cold Gun, Dual Point Hose Kit, (2) 1/4" (6 mm) Cone Nozzles, (2) 1" (25 mm) Fan Nozzles, Automatic Drain Filter Separator

Performance
Cold Gun Performance
5215 Cold Gun | Supply Pressure: 100 PSIG / 6.9 BAR | Air Consumption: 15 SCFM / 425 SLPM | Sound Level: ~70 dBA
5315 Cold Gun | Supply Pressure: 100 PSIG / 6.9 BAR | Air Consumption: 15 SCFM / 425 SLPM | Sound Level: ~70 dBA
5230 High Power Cold Gun | Supply Pressure: 100 PSIG / 6.9 BAR | Air Consumption: 30 SCFM / 850 SLPM | Sound Level: ~82 dBA
5330 High Power Cold Gun | Supply Pressure: 100 PSIG / 6.9 BAR | Air Consumption: 30 SCFM / 850 SLPM | Sound Level: ~82 dBA

How it works (summary)
The Cold Gun uses a vortex tube to split compressed air into a hot and a cold stream. Secondary air is entrained, the hot stream vents through a muffled exhaust and the cold stream is delivered through a flexible hose to the point of use. A magnetic base provides simple mounting and portability.

Caractéristiques / spécifications techniques

• Commercial name / series: Cold Gun Only
• Available versions: Standard Cold Gun and High Power Cold Gun
• Temperature drop: 54°F (30°C) below supply air temperature
• Recommended supply pressure: 80–100 PSIG (5.5–6.9 BAR)
• Air consumption (standard): 15 SCFM (425 SLPM)
• Air consumption (high power): 30 SCFM (850 SLPM)
• Sound level (standard): ~70 dBA
• Sound level (high power): ~82 dBA
• Operation: vortex cooling; quiet; no moving parts
• Shipping: Cold Gun Only shipped without hose kit or filter/separator
• SKU: P5015
• Price shown on page: 438 USD
