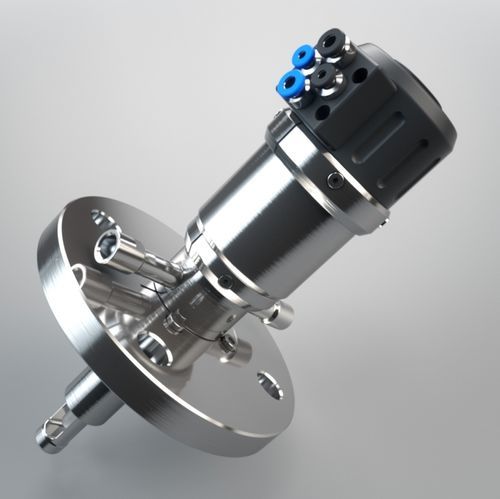

Retractable probe housing EXtract 810

pneumatic

Overview
EXtract 810 is a pneumatically operated retractable probe housing designed to be attached to process tanks or tubing. The drive unit inserts the sensor into the process medium and back into the cleaning chamber. When reaching the final position of the “measuring” or “service” position a pneumatic position signal responds automatically. Cleaning, rinsing and calibration of the sensor is possible while the process is running.

Your advantages

• Robust design with integrated scraper
• Extension of sensor lifetime and reduction of maintenance efforts
• Automatic safety lock while sensor is removed
• Plug and play installation with colour- and size-coded connection system
• Integrated limit switches
• Usable in ATEX areas
• Immersion length up to 107 mm
• High variation of process connections and sealing materials
• Rated up to 16 bar and 140 °C
• Materials: Stainless steel AISI 316L / 1.4404 or Alloy C22
• Can be fully automated with electropneumatic control unit EXmatic 470
• Drive unit free of maintenance

Configuration options (available selections)

• Material (wetted parts): Stainless steel 1.4404 / 316L; Alloy C22 (2.4602)
• Sealing material (wetted sealings): EPDM (FDA/USP VI); FPM (Viton); FFKM (Kalrez)
• Sensor type: 225 mm PG 13.5 gel-filled; 280 mm PG 13.5 liquid filled
• Process connection: Flange DN32 PN16; Flange DN40 PN16; Flange DN50 PN16; Flange ANSI 1 1/4" 150lbs; Flange ANSI 1 1/2" 150lbs; Flange ANSI 2" 150lbs; NPT M 1 1/4"; TriClamp 1-1.5" (OD Ø50.5mm); TriClamp 2.0 (OD Ø64mm)
• Cleaning connection: G 1/8" female thread; G 1/4" female thread; 1/4" NPT female thread
• Position feedback: pneumatic; electrical (NAMUR)

Applications

• For all kinds of Ø12–225 mm sensors or Ø12–280 mm liquid filled sensors with thread PG13.5 (pH glass and ISFET sensors, conductivity or temperature sensors, turbidity and other optical sensors)
• Chemicals
• Water treatment
• Rough processes
• Situations requiring automated sensor cleaning or calibration

Technical specifications

• Process pressure: 0…16 bar
• Process temperature: -10…140 °C
• Ambient temperature: -10…70 °C
• Immersion length: up to 107 mm
• Sensors: 225 mm Ø12 PG13.5 (also supports 280 mm Ø12 PG13.5 liquid filled)
• Materials (wetted): stainless steel 1.4404 / 316L; Alloy C22 (2.4602)
• Sealings: EPDM; FPM (Viton); FFKM (Kalrez)
• Process connections: Flange DN32 / DN40 / DN50; ANSI 1 1/4" / ANSI 1 1/2" / ANSI 2"; MNPT 1 1/4"; TriClamp 1-1.5"; TriClamp 2"
• Cleaning ports: G1/8"; G1/4"; FNPT1/4"
• Operating power: compressed air 4...6 bar
• Limit switches: pneumatically / electrically, integrated
