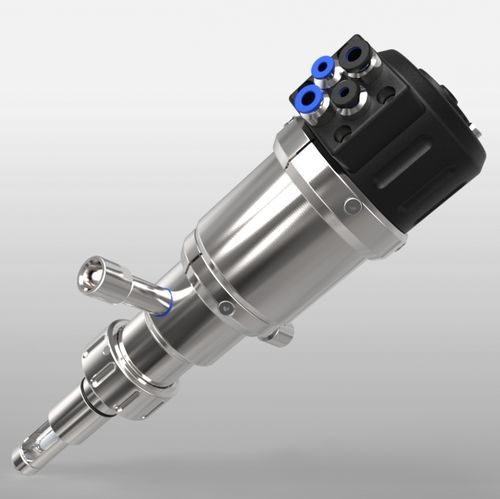

Retractable probe housing EXtract 815

pneumatic

Product description
EXtract 815 is a pneumatically operated retractable probe housing for mounting on process tanks or piping via DN25 welding sockets (G1 1/4"). The drive unit inserts the sensor into the process medium and retracts it into a cleaning chamber. Pneumatic position signals indicate the measuring and service positions. Sensor cleaning, rinsing and calibration are possible in-line while the process runs. An integrated PTFE scraper permits use in abrasive or rough processes.

Your advantages

• Integrated PTFE scraper and robust industrial design
• Extends sensor lifetime and reduces maintenance efforts
• Automatic safety lock when the sensor is removed
• Plug-and-play installation with colour- and size-coded connections
• Integrated limit switches (pneumatic / electrical)
• Suitable for use in ATEX areas
• Immersion length up to 90 mm
• Rated up to 16 bar and 140 °C
• Wetted materials: stainless steel AISI 316L / 1.4404 or Alloy C22
• Can be fully automated with electropneumatic control unit EXmatic 470
• Maintenance-free drive unit

Applications

• For Ø12–225 mm sensors or Ø12–280 mm liquid-filled sensors with PG13.5 thread (pH glass and ISFET sensors, conductivity, temperature, turbidity and other optical sensors)
• Chemicals
• Water and wastewater treatment
• Abrasive or rough processes
• Processes requiring automated sensor cleaning or calibration

Specifications (table)
Process pressure: 0…16 bar
Process temperature: -10…140 °C
Ambient temperature: -10…70 °C
Immersion length: up to 90 mm
O-ring position: 28 mm / 50 mm
Sensors: 225 mm Ø12 PG 13.5 (also 280 mm Ø12 PG 13.5 liquid filled)
Materials: stainless steel 1.4404 / 316L, Alloy C22 (2.4602)
Sealings: EPDM, FPM (Viton), FFKM (Kalrez)
Process connection: G1 1/4" (DN25) — welding socket DN25
Cleaning ports: G1/8", G1/4", FNPT1/4"
Operating power: compressed air 4...6 bar
Limit switches: pneumatically / electrically, integrated


Technical characteristics / specifications

• Process pressure: 0…16 bar
• Process temperature: -10…140 °C
• Ambient temperature: -10…70 °C
• Immersion length: up to 90 mm
• O-ring position options: 28 mm / 50 mm
• Sensor compatibility: Ø12–225 mm (PG13.5), Ø12–280 mm liquid filled
• Wetted materials: Stainless steel 1.4404 / 316L or Alloy C22 (2.4602)
• Wetted sealings: EPDM (FDA/USP VI), FPM (Viton), FFKM (Kalrez)
• Process connection: G1 1/4" (DN25) — welding socket DN25
• Cleaning connections: G1/8" female, G1/4" female, 1/4" NPT female
• Operating medium: compressed air 4–6 bar (pneumatic drive)
• Integrated features: PTFE scraper, integrated limit switches, automatic safety lock
